$573.68 each
In Stock
Get 8 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1-1/2"
29.3 Cv
248°F Max Temp
36°F Min Temp
36°F - 248°F
Description
–

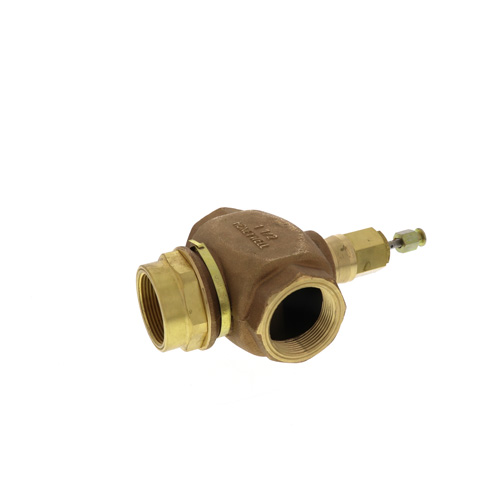

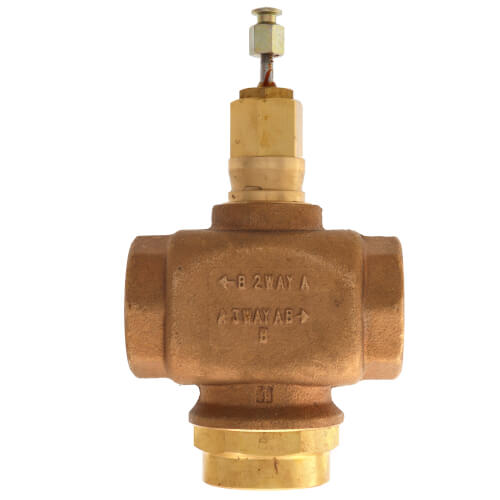

The V5013N is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valves are used for mixing service to direct flow from one or two inlets to a common outlet in two-position or modulating control systems.
- Red brass body with NPT-threaded connections.
- Stainless steel stem and brass plug.
- Low seat leakage rating.
- Spring-loaded, self adjusting packing.
- 50:1 rangeability per VDI/VDE 2173.
- Constant total flow throughout full stem travel.
- Accurate positioning to ensure state-of-the-art temperature control.
- Sizes range from 1/2 inch to 2 inches.
- Suitable for pneumatic or electric/electronic actuation.
- Repack and rebuild kits available for field servicing.
- Description: Three-way, Globe, 1 1/2 in, (Female) NPT, 29.3 Cv, Water or Glycol
- Valve Type Globe Valve
- Body Pattern: Three-way
- Flow Characteristic: Equal Percentage (A-AB)
- Flow Characteristic: Linear (B-AB)
- Controlled Medium: Water w/max of 50% Glycol
- Pipe Size (inch): 1 1/2 in.
- Pipe Size (DN): DN40
- Flow Capacity (Cv): 29 Cv
- Flow Capacity (kvs): 25 kvs
- Connection Type: NPT Female
- Maximum Safe Operating Pressure (psi): 240 psi
- Maximum Safe Operating Pressure (kPa): 1655 kPa
- Valve Action: Mixing
- ANSI Rating: 150
- Actuation: Must be purchased separately
- Stem Travel (in.): 3/4 in.
- Stem Travel (mm): 20 mm
- Maximum Differential Pressure Ratings (Close-off) (psi): 240 psi
- Maximum Differential Pressure Ratings (Close-off) (kPa): 1655 kPa
- Maximum Differential for Quiet Water Service (psi) 20 psid
- Maximum Differential for Quiet Water Service (kPa) 138 kPa
- Static Pressure Rating: ANSI 150
- Ambient Temperature Range (F): 36 F to 248 F water
- Ambient Temperature Range (C): 2 C to 120 C water
- Leakage rate (%): 0.05% of Cv
- Materials (Body): Red Brass
- Materials (Seat): Stainless Steel
- Materials (Stem): Stainless Steel
- Materials (Plug/Ball/Disc): Brass
- Materials (Packing): Teflon/EPDM
- Dimensions (in.): 7 13/16 in. high x 4 3/4 in. wide x 1 13/16 in. deep
- Dimensions (mm): 210 mm high x 82 mm wide x 39 mm deep
- Stroke (in.): 3/4 in.
- Stroke (mm): 20 mm
- Bonnet Size (in.): 1-3/8 in.
- Bonnet Size (mm): 35 mm
- Used With: Q5020/DCA; ML6984/ML7984; Q5001/Modutrol IV Motor; ML6420,21A,25; ML7420/ML7421A/ML7425
- Approvals, CRN Number 0C0861.9087YTN/0C0861.123
Specs
–
| Application: | Point of Source |
|---|---|
| Size: | 1-1/2" |
| Body Pattern: | 3-Way |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Flow Capacity (Cv): | 29.3 |
| Material: | Brass |
| Max Pressure (PSI): | 240 |
| Min Temp (F): | 36°F |
| Temperature Range (F): | 36°F - 248°F |
| Max Temp (F): | 248°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Body Pattern
Connection Type
Flow Capacity (Cv)
Min Temp (F)
Max Temp (F)
You May Also Need
Product Reviews
4.67 out of 6 reviews
83% would recommend this product
5 star
83%
4 star
0%
3 star
17%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
I would buy this product again!!
This was shipped in a timely manner and customer service was AWESOME!!!
Sheka
Clarksville, tN
3 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Does the job with some creative thinking
I bought this for my new combination wood/oil boiler. It arrived and had no literature with it. The issue that I am having with it is that there isn't a way to set it in one position. No set screw or tightening nut. I used a piece of wire to go through a predrilled hole.
Like I said, it works as long as you don't mind using some creative thinking to get the desired end result.
Gary
New Hampshire
3 years ago
Verified Buyer
Was this review helpful to you?
Yes
Very good product and fast delivery
Emanual
Los Angeles CA
4 years ago
Verified Buyer
Was this review helpful to you?
ive bought a few
easy to use. Wish I had more of them.
battery the enegerizer bunny
Dallas Tx
7 years ago
Verified Buyer
Was this review helpful to you?
Yes
These files are used to control temperature and anodizing process. We used to use very large cast iron valve that took up so much space and was very difficult to handle. This product is compact and reliable.
Jim
Southington Connecticut
8 years ago
Verified Buyer
Was this review helpful to you?
good product
good product, speedy delivery, jst what we aere looking for
John
NY NY
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
5 Questions5 Questions
Q: Since this is a mixing valve, With full stroke in either position, does the one port closes completely. Using on a hydronic heating system, if I want flow to not go to bypass position outlet, will flow for the valve close bypass port
Asked by Chuck Pitsch 10 years ago
Add your answer
-
Yes it closes the bottom port when pushed all the way down. Carl McBroom
Was this review helpful to you?
-
To answer your question , yes, it has two seats which will fully close off one port or the other at full stroke. Rodney
Was this review helpful to you?
Q: are V5013N1071 the same as V5013N1071/U and V5011N1073 the same as V5011N1073/U?
Asked by Eric 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes they are the same. The /U is used in Honeywell to identify the pack quantity. U is unit or single. /B is bulk and is usually reserved to OEM. /P is pallet and also usually reserved for OEM.
Was this review helpful to you?
Q: Is there an electronic control attached to this unit? can I use it in a closed system? Is it the best for this type of application?
Asked by Chris 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve must be used with one of the actuators listed under the product description. The V5013N1071 is made of brass, which is sufficient for closed systems.
Was this review helpful to you?
Q: what fitting do i need for the bottom connection
Asked by jeff 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe same pipe fittings as the other 2 ports. You cannot block or otherwise shut off the bottom port of the valve. If you shut off the bottom port, you are likely to have severe water hammer and reduced life of the valve. Any modfications to the valve will also void the warranty on the unit.
Was this review helpful to you?
Q: Piping diagram for reheat coil ?
Asked by Oz 15 years ago
Add your answer
Verified Reply- PexSupply StaffPages 6 and 7 of the following manual should have the diagrams you need: http://s3.pexsupply.com/manuals/1296068741235/45320_PROD_FILE.pdf
