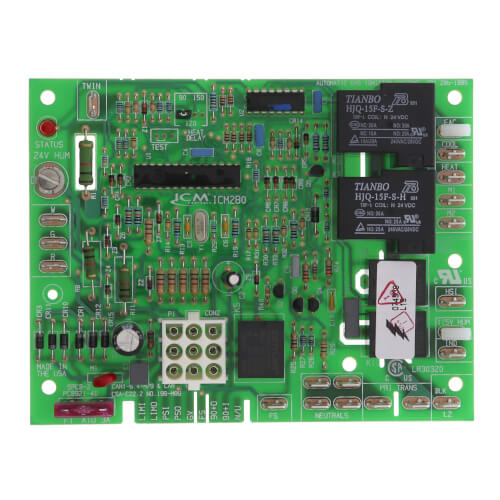

ICM280 Furnace Control Module
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$101.00 each
In Stock
Get 63 Wed, Dec 6
More Available
Order by today, receive Wednesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Will this part work with my unit?
Click to see if this part is compatible with your unit.Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Line (98/132 VAC) @ 60 Hz
Description
–
ICM offers low cost, direct wire for wire replacement furnace controls for many popular OEM models. Our furnace controls come standard with many safety features including 100% gas shutoff in case of ignition failure.
Product Features
Product Features
- Microprocessor-based fan blower
- Inducer fan outputs
- Hot surface ignitor output
- Flame sensor input
- Gas valve output
- Status LED for fault codes
- Twinning compatible with another ICM280 board
- Functions with all 24 VAC thermostats
- Drop-in replacement for Goodman, Janitrol, Texas Instruments, White-Rodgers and UTEC
- For 80+ and 90+ applications
- 9-pin card slot connection and 9-pin Molex connector on board
- UL recognized
Specs
–
| Product Type: | Furnace Control |
|---|---|
| Voltage: | Line (98/132 VAC) @ 60 Hz |
| Fan: | 2 HP @ 240 VAC |
| Inducer Motor: | 4A, FLA-8.0 LRA @ 120 VAC |
| Gas Valve: | 1.5A @ 30 VAC |
| Ignitor: | 5 amps @ 120 VAC |
| Heat: | 5A, 240 VAC |
| Cool Blower: | 10A, 2 HP, 240 VAC |
| Heat Blower ON Delay: | 30 Seconds |
| Cool Blower ON Delay: | 5 Seconds |
| Heat Blower OFF Delay: | 90 Seconds, 120 Seconds, 150 Seconds |
| Cool Blower OFF Delay: | 60 Seconds |
| Operating Temp Range: | -40° to 176°F |
