Auto-Voltage Electromechanical Time Switch, 40A, DPDT (120-277V)

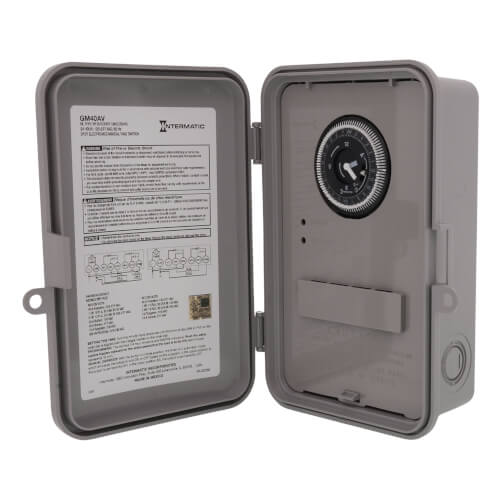

The GM40 Series 40 Amp Auto-Voltage Time Switch is a universal electromechanical control, which automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The time switch controls high amperage loads for lighting, HVACR, pumps, motors, fan controls, access controls, agricultural facilities, and general purpose electrical circuits. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and features a DPDT Switching Configuration standard.

Features:

• Real Clock Face with Captive Trippers
• Automatically detects input voltage without the use of dip switch or selector pins.
• Can operate at any voltage between 120 and 277 VAC.
• Mounted in a compact NEMA 3R outdoor enclosure.
• Features a DPDT switching configuration (two normally open and two normally closed contacts).
• Manual override switch allows for ON/OFF/AUTO functionality.

Applications:

• Pool
• Spa
• Lighting Control
• Access Control
• HVAC/R
• Agricultural Facilities
• Pumps / Motors / Fan Controls
• General Purpose Electrical Circuits

Normally Open Contacts:

• 40 Amp Resistive, 120 VAC, 120-277 VAC
• 1 HP (16 FLA, 90 LRA), 120 VAC
• 2 HP (12 FLA, 52 LRA), 208-277 VAC
• 30 Amp Ballast, 120 VAC
• 20 Amp Ballast, 277 VAC
• 15 Amp Tungsten, 120 VAC
• 300 VA Pilot Duty, 120-240 VAC

Normally Closed Contacts:

• 30 Amp Resistive, 120-277 VAC
• 1 HP (12 FLA, 30 LRA), 120 VAC
• 2 HP (10 FLA, 30 LRA), 240 VAC
• 10 Amp Ballast, 277 VAC
• 2 Amp Tungsten, 120 VAC
• Operating Temperature: 40ºC to 55ºC (40ºF to 131ºF)
