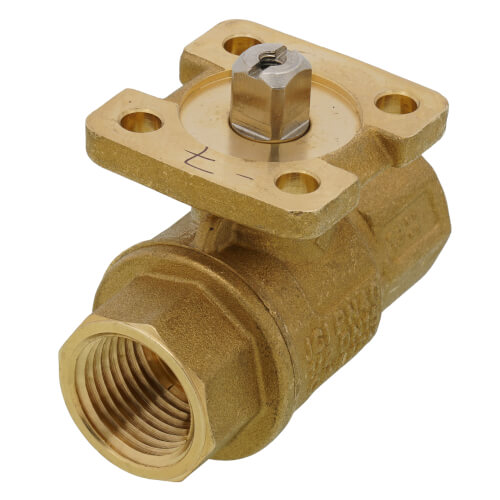

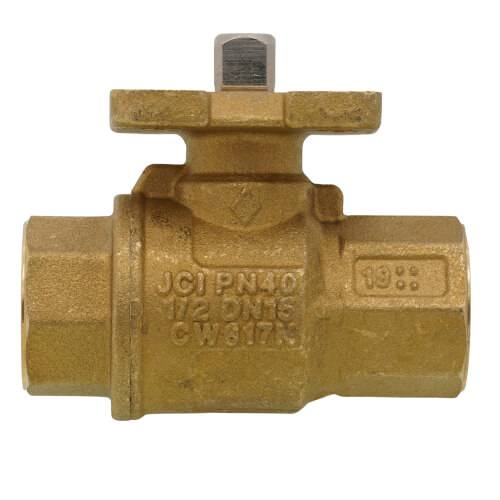

1/2" NPT 2-Way Chrome Plated Brass Ball Valve (1.2 Cv)

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2" through 2" (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA9203 and VA9208 Series Spring Return Electric Actuators for on/off, floating, or proportional control.

Features:

• Designed to regulate the flow of hot or chilled water, 50/50 glycol solution and low-pressure steam in HVAC applications
• Amodel flow characterization disk allows for accurate control and eliminates the need for pipe reducers
• Forged brass body, dual EPDM stem seals and 15% graphite filled PTFE ball seats for leak free operation
• Compact size allows for installation in tight fit locations
• Maintenance free design; no packing or rebuilding necessary
• Equal percentage flow characteristic
