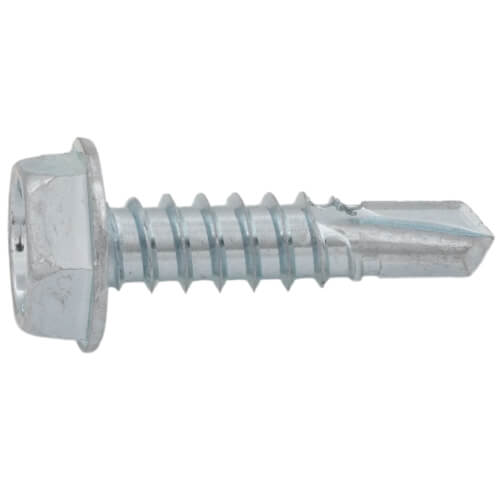

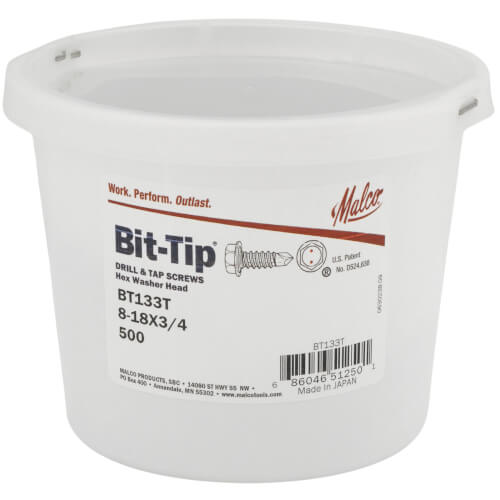

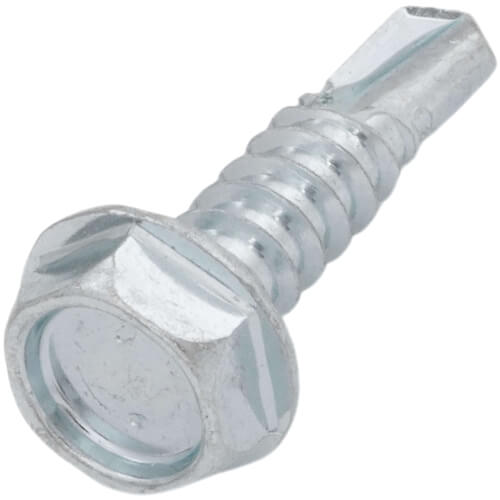

3/4" (Length) 5/16" (Head Size) Bit Tip Drill & Tap Sheet Metal Screws (500 Pack)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$32.72 each
In Stock
Get 269 Tue, May 27
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
5/16"
3/4" Length
Description
–
Features:
- Qty: 500
- Screw Size: 10-16x3/4.
- Head Type: (HW) Hex Washer Not Slotted
- Driver Size: 5/16" Hex
- Length of screw: 3/4".
- Bit-Tip screw #3 Point.
- Material thickness recommendation for Bit-Tips: .110" to .175".
- Pull-out values: 26ga-145 lbs, 24ga-235 lbs, 20ga 364 lbs, 16ga-708 lbs and 14ga 1,015 lbs.
- Tensile Strength: 2100 lbs.
- Torsional Strength: 61 lbs.
- Drills its own hole.
- Made from strong, high quality, specially heat treated steel.
- Excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives.
- Bit-Tip elminates the need for costly auxiliary fastening equipment such as dril bits, taps and welding equipment.
Specs
–
| Product Type: | Screw Bit Tip |
|---|---|
| Length (Inches): | 3/4" |
| Size: | 5/16" |
