Description
By drilling its own hole, Bit-Tip® Drill and Tap Screws produces the optimum hole size, resulting in better thread engagement and a tighter fit. One operation fastening also means no alignment problems. Bit-Tip® has a wide range of industry applications. Select the Bit-Tip® that’s right for the job. Point length will determine metal thickness that can be drilled, tapped and fastened. Also, plywood, soft wood, composition board, drywall, insulation and laminates may be fastened to metal framing or components. Made from strong, high quality, specially heat treated steel. Bit-Tip® Self Drilling and Tapping Screws are precision cold forged insuring uniformity of dimension and drill point contours. The versatile Bit-Tip® Screw is an excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives. Bit-Tip® also eliminates the need for costly auxiliary fastening equipment such as drill bits, taps and welding equipment. Requires only a standard screw gun power tool rated at 2500 RPM equipped with drilling depth locator.

Features:

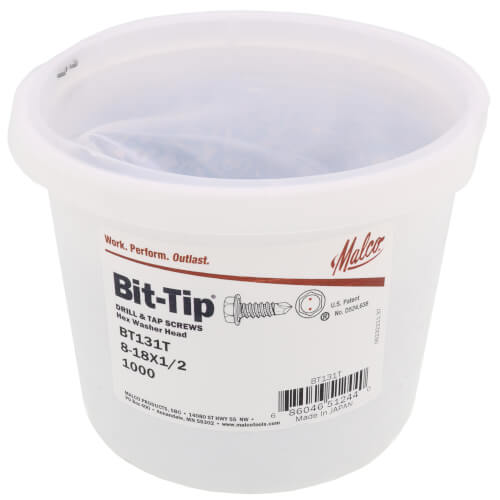

  • Qty: 1,000
  • Screw Size: 8-18x1/2.

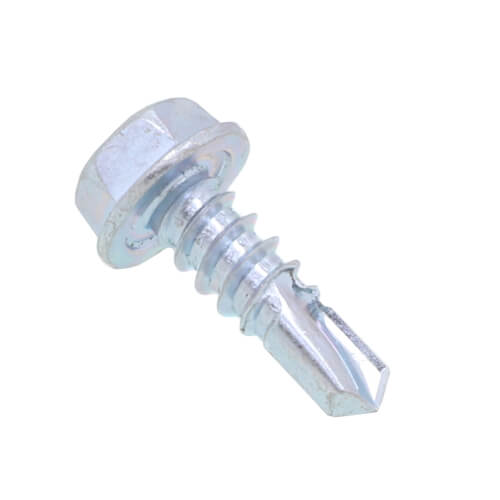

  • Head Type: (HW) Hex Washer Not Slotted
  • Driver Size: 1/4" Hex
  • Length of screw: 1/2"
  • Bit-Tip screw #2 Point
  • Material thickness recommendation for Bit-Tips: .035" to .100"
  • Drills its own hole
  • Made from strong, high quality, specially heat treated steel
  • Excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives
  • Bit-Tip elminates the need for costly auxiliary fastening equipment such as dril bits, taps and welding equipment
Hide Description
Specs
Product Type:

Bit Tip

Screw

Type:

Screw

Length (Inches):

1/2"

Size:

1/4"

×
