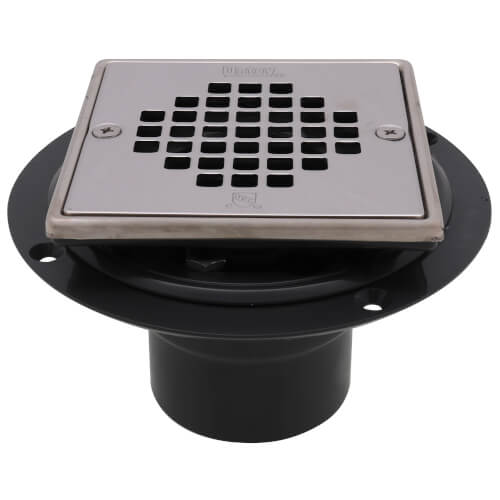

2" or 3" PVC Square Low Profile Drain Stainless Steel Screw-In Strainer with Ring and Plug
This square low profile shower drain is designed for tile or marble installations where a shower pan liner is used. This PVC drain accommodates 2 or 3 inch pipe connections and includes a polished stainless steel screw-in strainer, beauty tile ring, and tool-free test plug. The complete assembly measures 4.26 inches square and connects to drain pipe via solvent weld. This is part of the Oatey Testable 130 Series Drain.
Key Features & Benefits
Compatibility & Requirements
This drain requires a shower pan liner for proper installation in tile or marble shower applications. Connect to 2 inch or 3 inch PVC drain pipe using solvent weld. Installation should be performed by a qualified professional familiar with shower pan liner systems and local plumbing codes.
Installation & Care
Install the drain body through the shower pan liner according to local plumbing code requirements. Apply solvent weld cement to connect the drain to the drain pipe. Adjust the reversible clamping collar to achieve the correct height for tile or marble surface. Set tile or marble around the beauty tile ring to protect grout lines. Install the test plug and perform a leak test before completing tile work. Remove the test plug by turning 1/4 turn by hand or using a notched pipe. Thread the stainless steel strainer into place after completing tile installation.
What's Included
Frequently Asked Questions
Q: Can this drain be used with both 2 inch and 3 inch drain pipes?
A: Yes, this drain is designed to accommodate either 2 inch or 3 inch PVC drain pipe using solvent weld connections.
Q: How do I remove the test plug after installation?
A: Turn the test plug 1/4 turn and remove it by hand, or use a notched pipe if additional leverage is needed.
| Type: | Shower Drain |
|---|---|
| Drain Size: | 3" 2" |
| Material: | PVC |
