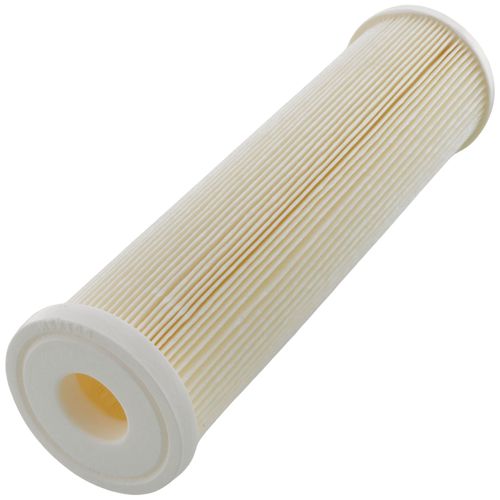

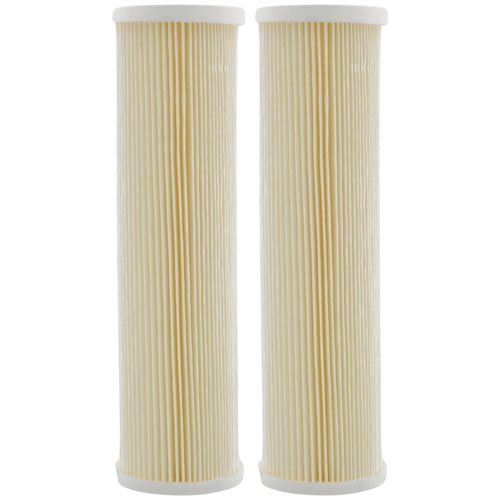

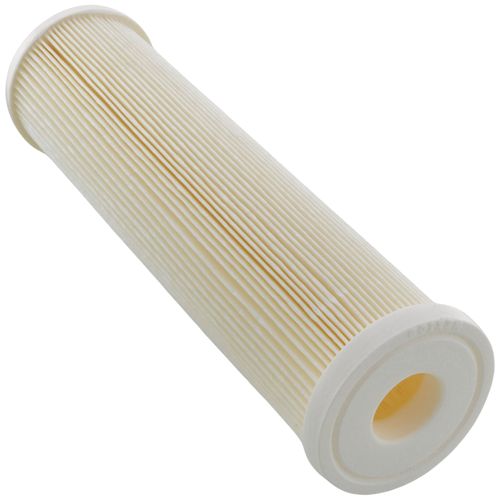

W5CP, Pleated Cellulose Polyester Sediment Filter Cartridge (5 Micron)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
155182-52 has been discontinued
Discontinued June 27, 2026
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:
ECP5-10, Pleated Cellulose Polyester Sediment Filter Cartridge (5 Microns)
Product Highlights
–
Cellulose, Polyester
9-3/4"
2-5/8" Diameter
WVC-34, WC34-PR, W34-PR, W38-PRA, WC34-PRB, WH34
Description
–
*Not recommended for well water applications
GENERAL FEATURES/BENEFITS:
WCL SEDIMENT CELLULOSE PLEATED CARTRIDGES
WCP SEDIMENT CELLULOSE POLYESTER PLEATED CARTRIDGES
This cartridge is compatible with the following filter housings:
GENERAL FEATURES/BENEFITS:
- Manufactured from durable, pleated media that is suitable for a wide range of filtration uses
- Filter media is pleated around a polypropylene core for added strength
- Pleated technology maximizes dirt-holding capacity and extends the time period between changes or cleaning
- Cartridges are resistant to chemical attack, making them suitable for a variety of residential, commercial and industrial applications
- Designed for use on chlorinated water supplies
WCL SEDIMENT CELLULOSE PLEATED CARTRIDGES
- Specifically manufactured from cellulose pleated media and are designed for general water filtration purposes
- Economically priced and highly effective at reducing sediment particles down to 20 microns in size
WCP SEDIMENT CELLULOSE POLYESTER PLEATED CARTRIDGES
- Manufactured from a special formulation of resin-impregnated cellulose and polyester fibers
- Unique blend of materials provides higher wet strength
- Deliver high flow rates and dirt-holding capacity while maintaining extremely low pressure drops
- Reduce sediment particles down to 5 microns in size
This cartridge is compatible with the following filter housings:
- WVC-34, Valve-In-Head Clear Whole House with Pressure Relief Button
- WC34-PRB, 3/4" Standard Clear Housing with Integral Bracket
- W34-PR, 3/4" Standard Opaque Housing with Pressure Relief Button
- WC34-PR, 3/4" Standard Clear Housing with Pressure Relief Button
- WH34, 3/4" High Temperature Housing (30-125 PSI)
- W38-PRA, Standard 10" Slim Line Opaque Housing with Pressure Relief Button & Mounting Bracket
Specs
–
| Product Type: | Filter Cartridge |
|---|---|
| Type: | Sediment |
| Application: | Point of Entry |
| Material: | Cellulose Polyester |
| Filter Type: | Pleated |
| Micron Rating: | 5 |
| Flow Rate (GPM): | 10 |
| Height: | 9-3/4" |
| Diameter (Inches): | 2-5/8" |
| Reduction Claim: | Sediment |
| Used With: | WVC-34 WC34-PR W34-PR W38-PRA WC34-PRB WH34 |
