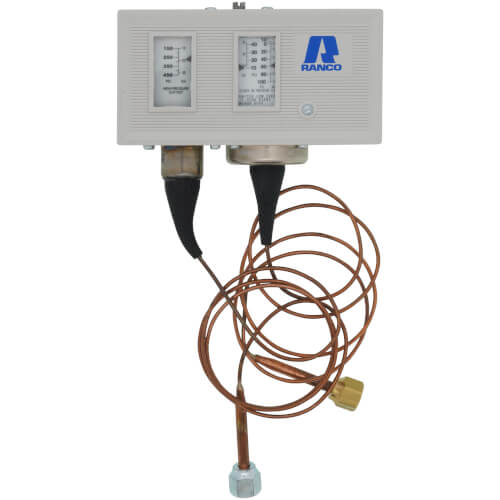

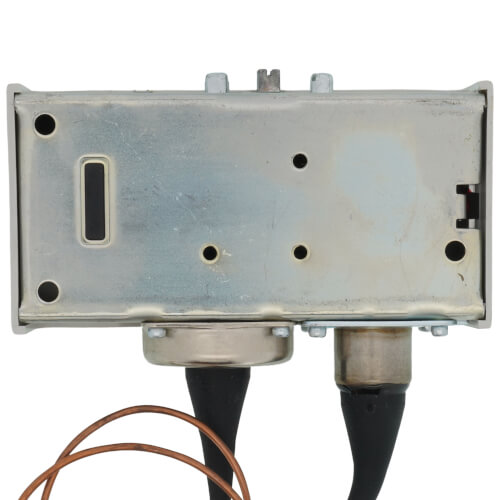

Dual Function Refrigeration Pressure Control w/ 36" Capillary (150 to 450 Cut-Out PSI)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$194.25 each
In Stock
Get 16 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
SPST
450 MAX PSI
150 PSI
1/4" SAE flare nut Connection
Description
–
These controls offer a tailored variety of ranges and options for R12, R22, and R502 refrigerants. Low and high pressure functions are combined into a single control with one switch
Features
Features
- Exclusive "convertible" reset for manual or automatic high pressure reset on some models
- NEMA 1 enclosure with non-conductive cover
- Front-located captive cover screw
- Large, easy-to-read scale plate
- SUPER CAP® capillary protection system
- Universal mounting and compact design
- Color coded flare nuts
Specs
–
| Cut-In PSI: | 10" to 100 PSI |
|---|---|
| Cut-Out PSI: | 150 to 450 PSI |
| Switch Action: | SPST |
| Reset Type: | Automatic |
| High Pressure Differential: | 50 Fixed |
| Low Pressure Differential: | 10 to 40 PSI |
| Capillary Length: | 36" |
| Pressure Range: | 10" to 100 psi 150 to 450 psi |
| Max Pressure (PSI): | 450 |
| Min Pressure (PSI): | 150 |
| Product Type: | Dual Pressure |
| Connection Type: | 1/4" SAE flare nut |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
Customer Images
Showing 1-1 of 1 reviews
Leaked refrigerant after 8 months.
Installed this Ranco Dual Pressure safety switch 8 months ago. Last week had to replace because it was leaking refrigerant. The system was very low on charge. However, low pressure safety switch didn't cut the system OFF and that poor condenser was running at east for 1.5 days almost completely empty; compressor was over heating with no oil circulation. I had to pay out of my pocket for the new high- and low- pressure switches for the refrigerant and my labor was free of charge because that condenser was still under 1 year parts/labor warranty..... I am the cofactor that did the installation. I had very bad experience with Ranco mechanical Fan Cycle switches as well.. I don't feel safe installing any of Ranco mechanical pressure control switches. The failure rate is almost 100% within a year.
Ed
Memphis, TN
2 years ago
Was this review helpful to you?
