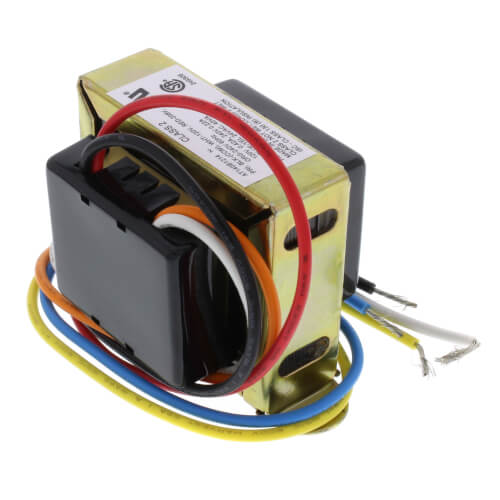

Foot Mounted 120/208/240 Vac Transformer with 9 in. Lead Wires and Plastic End Caps, AT140B1214
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
- Rated at 40 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specifications
- Description: Foot mounted 120/208/240 Vac Transformer with 9 in. lead wires and plastic end caps
- Electrical Ratings: 120 Vac, 208 Vac, 240 Vac
- Electrical Ratings -Secondary Voltage: 27 V.O.C.
- Frequency: 60 Hz
- Mounting: Foot-mounted
- NEMA Rating: No
- Electrical Connections (Primary)(in.): 9 in. lead wires
- Electrical Connections (Secondary)(in.): 9 in. lead wires
- Electrical Ratings -Output: 24 Vac at 40 VA
- Dimensions: 1-11/16 in. high x 3-1/2 in. wide x 1-3/4 in. deep
- Temperature Ratings: -20 F to +105 F
- Includes: Plastic end caps
Specs
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 240V 120V 208V |
| Mount: | Foot |
| Voltage (Secondary): | 27 V.O.C. |
| Wiring: | 9" leadwires |
| Electrical Output: | 24 Vac at 40 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 40 |
| NEMA Rating: | None |
| Height: | 1-11/16" |
| Width (Inches): | 3-1/2" |
| Depth (Inches): | 3-5/8" |
| Features: | Plastic End Caps |
Questions?
Compare Similar Products
120V
208V
You May Also Need
Product Reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Worked fine but no instructions.
Provides power to thermostat
Product Q&A
1 QuestionQ: Is this for an electric furnace? I have a Friedrich Heating and Cooling system.
Asked by Barbwire 13 years ago
Add your answer
Hi, I used it to power a uv lighting system since it needed a 24vac power supply and i didnt want to use the existing transformer. As long as the device you are using requires less than 40va power i assume it should work. Just check the existing device you are replacing or check requirements if the new device you are installing. If unsure contact an electrician. Hope that helps. Kalyan
This transformer provides the 24 volt signal to the relay box on any furnace, gas, oil, or electric, and any cooling system or combo system, as long as you have the relay box attached to the furnace. You just need to select your input voltage to the transformer by using the color coded input wires which correspond to your input voltage.
This product could fit any number of HVAC system as they all run from 24 V AC. As long as its ampacity (40VA or about 1.6Amps) is adequate it is very likely a fine replacement.
