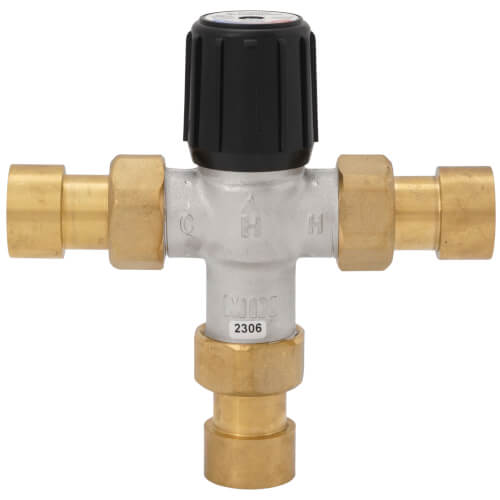

1" Union Sweat Mixing Valve, 70-180 F (Heating Only)
Hover image to zoom
1" Union Sweat Mixing Valve, 70-180 F (Heating Only)
Hover image to zoom
$130.12 each
In Stock
In Stock
Get 107 Mon, Mar 27
More Available
Fast Track Logo
Order by 4PM, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Type icon
C x C Connection
Size icon
Flow Capacity (Cv) icon
3.9 Cv
Max Temp (F) icon
180°F Max Temp
Min Temp (F) icon
70°F Min Temp
Temperature Range (F) icon
70°F - 180°F


The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.

  • Dual purpose mixing or diverting valves
  • Constant water temperature under changing operating conditions
  • Reliable performance at minimum flow of 0.5 gpm
  • Proportional valve (simultaneous control of hot and cold water)
  • Temperature limit at any point
  • Flow reduction in seconds if cold water supply is interrupted
  • Nickel-plated brass construction, EPDM O-rings
  • All brass proportioning shuttle
  • Straight through design (hot and cold at the same level)
  • Max. pressure 150 psi (1034 kPa)
  • Max temperature 212 F (100 C)
  • Designed for easy maintenance and element replacement. Teflon coated to prevent mineral build-up and extend life.
  • Tamper-resistant design
  • Valve trapping not required
  • AM-1 Union STD & C and AM1070 Models include check valves(hot/cold ports)
  • ASSE, CSA and IAPMO listed
  • U.S. Patent No. 6,079,625

  • Description: 1" Sweat Union Mixing Valves HEATING ONLY
  • Connection Type: Union Sweat
  • Pipe Size (inch): 1"
  • Operating Temperature Range (F): 80 F to 180 F
  • Capacity Cv): 3.9 Cv
  • ASSE: 1017




Min Temp (F):


Temperature Range (F):

70°F - 180°F

Max Temp (F):


Flow Capacity (Cv):


Connection Method:


Connection Type:

C x C


Mixing Valve


Point of Source

Heating Only
