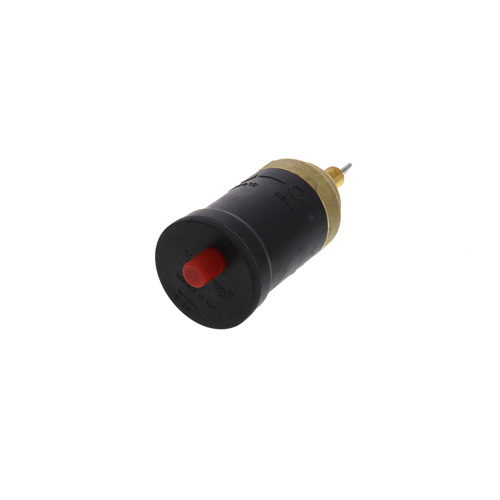

Automatic Air Vent with Built-in Shutoff Valve for Hydronic Heating Systems
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$38.20 each
In Stock
Get 99 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/8"
Hydronic (Water)
212°F Max Temp
90 psi
140°F Min Temp
140°F - 212°F
Description
–
Note: This product is intended for hydronic heating Systems. Do not use in steam systems.
The Honeywell Braukmann EA122A Automatic Air Vent purges air from high pressure mains and equipment in hot or cold closed water systems.
The Honeywell Braukmann EA122A Automatic Air Vent purges air from high pressure mains and equipment in hot or cold closed water systems.
- Includes removable float/valve assembly for easy servicing.
- Not for use in steam systems.
- Body, cover and float assembly made of thermoplastics.
- Internal parts made of corrosion-resistant and chemical-resistant materials for use with water systems containing light concentrations of propylene glycol, mineral oils, or petroleum-based oils.
- Oil resistant seal.
- EPDM seat disc and O-ring.
- Description: Automatic air vent with built-in shutoff valve and leakage guard, oil resistant
- Application: Hydronics
- Connection Type: NPT Male
- Connection Size (in.): 1/8"
- Size (inch): 1/8"
- Maximum Safe Operating Pressure (psi): 90 psi
- Maximum Safe Operating Pressure (kPa): 620 kPa
- Maximum Operating Temperature (F): 212 F
- Maximum Operating Temperature (C): 100 C
- Dimensions (in.): 5-1/4" long x 1 7/8" diameter
- Dimensions (mm): 133 mm long x 48 mm diameter
- Corrosion Resistant: Internal parts made of corrosion-resistant and chemical-resistant materials for use with hydronic systems that may contain concentrations of propylene or ethylene glycol, mineral oils, or petroleum-based oils.
Specs
–
| Application: | Main Vent |
|---|---|
| Size: | 1/8" |
| System Type: | Hydronic (Water) |
| Type: | Built-In Check |
| Max Pressure: | 90 psi |
| Min Temp (F): | 140°F |
| Max Temp (F): | 212°F |
| Temperature Range (F): | 140°F - 212°F |
| Material: | Thermoplastic |
| Body Pattern: | Straight |
| Mount: | Straight |
| Adjustability: | Non-Adjustable |
| Thread Type: | Male |
| Thread Size: | 1/8" |
| Height: | 5-1/4" |
| Diameter (Inches): | 1-7/8" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.94 out of 35 reviews
100% would recommend this product
5 star
94%
4 star
6%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 35 reviews
Thank you working good
On my system
None
Nine
1 years ago
Verified Buyer
Was this review helpful to you?
Great product, would purchase again.
This was very easy to install, I put WD 40 on the threads and let that soak for a couple days, the old one came out easily the new one threaded down easily with no leaks, functions very well, bled the air out of the line quickly.
Wild Bill
Conneaut Ohio
4 years ago
Verified Buyer
Was this review helpful to you?
Good service..Good quality!!!
You guys are awesome!!!!!
Place the order is really easy and best of all , service is really good .
I place the order today And I receive my order the next day .
Thanks !!! GIL.
Gil. Martínez
Florida
4 years ago
Verified Buyer
Was this review helpful to you?
I will always come back to supplyhouse.com
EASY REPLACEMENT / EXCELLENT PRICE
Rick
Hanover PA
4 years ago
Verified Buyer
Was this review helpful to you?
The best air purging valve
It is an excellent product. It is used on my hot water boiler to remove the air. My tankles boiler is a water flow dependent and if there air it does not work. The big advantage of the valve besides removing the air is that can be removed to be cleaned without opening the plumbing thus you do not introduce air.
George
New York
4 years ago
Verified Buyer
Was this review helpful to you?
Excellent product and good value
Bought product for in floor heating boiler. Liked the feature that it can be shut off for cleaning if needed. Excellent quality and good value and yes I would buy this product again if needed.
Roger
Okemos, Michigan
5 years ago
Verified Buyer
Was this review helpful to you?
Braukmann air valve
Excellent product, fair price, timely and rapid delivery,
Admiral Bill
Central New York
5 years ago
Verified Buyer
Was this review helpful to you?
Air vent
This vent comes with a shut-off so you can rebuild the vent without having to remove it.
Brad
Randolph Ohio
6 years ago
Verified Buyer
Was this review helpful to you?
great purchase
quick delivery-easy install -worked great-havn,t had to purge air from lines since installing new vent
jim
michigan
6 years ago
Verified Buyer
Was this review helpful to you?
Vent valves
Parts were delivered promptly. So far working good, not leaking like ones I replaced. System has not been turned on yet, waiting for winter. Don't expect any issues.
Jim
Cleveland, Ohio
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Looking for a auto vent to vent natural gas from well water. This would be placed above hot water tank(in hot water line) to vent outside. Would this vent work?
Asked by Tom 13 years ago
Add your answer
-
This valve will vent then gas out of the stem only. The efficiency would be increased by mounting the valve at the top of a bleed-off trap.
Was this review helpful to you?
-
Yes it will, I used one on a hot water heating system to vent air.
Was this review helpful to you?
Q: I understand this vents air under positive pressure, but if the system looses pressure, does it allow air to enter the system? IE.. if it is a float, how does it prevent the situation of lower system pressure than atmospheric? In the case of a system leak or negative pressure condition, can the vent allow air to enter?
Asked by CHCinc 14 years ago
Add your answer
- Another PexSupply Customer
Yes its a 2 way vent.... the only way to stop air from going back in, is to close it off. If the boiler is not piped properly the hyvent can also suck in air when the circulator kicks on.... kpc
Was this review helpful to you?
- Another PexSupply Customer
in most hydronic set ups (even closed systems), there is a water inlet (a pressure valve) which will add more water to keep the pressure recommended for your boiler/system (mine is 12-15psi). therefore, a hydronic system will not have a lower than atmospheric pressure unless the water inlet does not function. If somehow you create a vacuum in your system then first your expansion tank (if any) will kick in and then this valve would probably let some air. In case of a water leak - if your water inlet does not work, the air will come in from the place the water is leaking... so it does not have to be the valve.
Was this review helpful to you?
- Another PexSupply Customer
If the system loses pressure, the valve WILL allow air to enter the system to prevent negative pressure. The water enters the body of the vent and lifts the float when all of the air is gone. If the system loses pressure and water drains from the vent assembly, the float drops and allows air to enter.
Was this review helpful to you?
Q: May I switch out a maid-o-mist auto vent and use this one in its place?
Asked by Bert 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you can do this.
Was this review helpful to you?
Q: What is the difference between EA122A1002 and EA122A1028?
Asked by Donnie 15 years ago
Add your answer
Verified Reply- PexSupply StaffPart EA122A1002 is designed for use in heating systems, while EA122A1028 is for plumbing systems.
