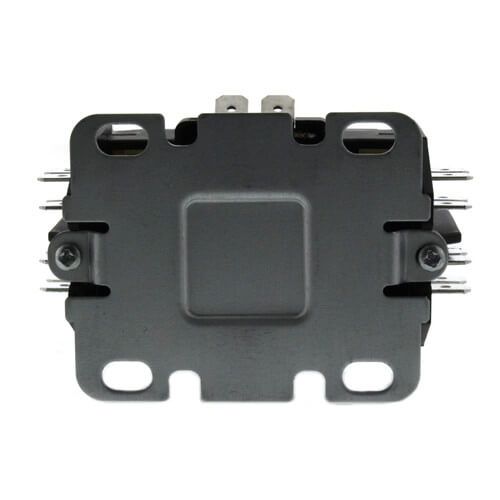

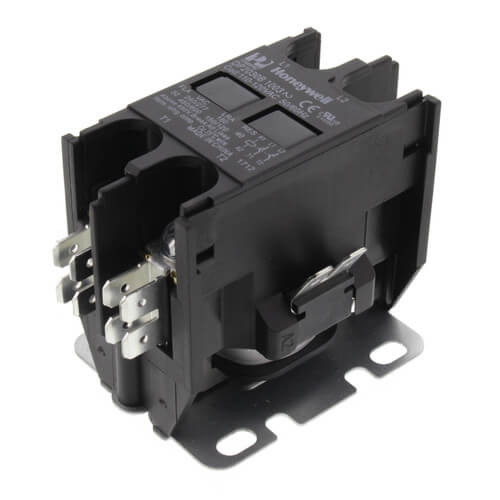

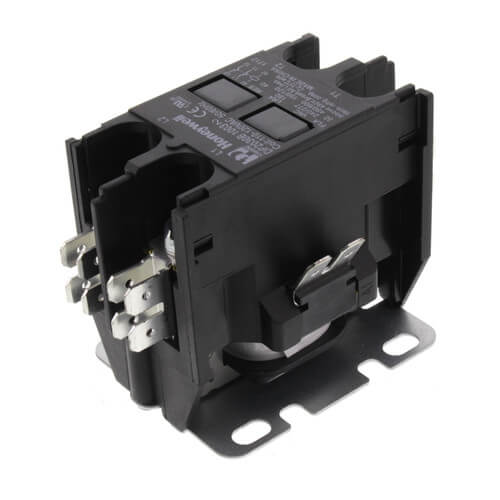

120 Vac 2 pole Definite Purpose Contactor (30 A), DP2030B1003
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DP2030B1003 has been discontinued
Discontinued December 6, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: DP2030B1002, R12
Product Highlights
–
120v
30 Amps
-4°F to 149°F
Description
–
Overview:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features:
- Silver cadmium oxide contacts provide long life under demanding duty cycles.
- Low profile design allows for more wiring room.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Coil Ratings Voltage 120 Vac
- Poles: 2
- Electrical Connections (main): #10 combination head screws
- Contact Connections (coil): double 1/4 in. quick-connects
- Dimensions (in.): 2.2" high x 3.31" wide x 2.17" deep
- Contact Electrical Ratings (AFL @ 277, 480, 600 Vac) 30 A @ 240/277 Vac
Specs
–
| Voltage: | 120v |
|---|---|
| Application: | Economy Definite Purpose Contactor |
| Poles: | 2 |
| Amperage: | 30 |
| Temperature Range (F): | -4°F to 149°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
Poles
Amperage
CURRENT ITEM
120v
2
30
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
I would buy from this company again
Ordered product Friday noon, arrived next day at noon from Reno. Product works as advertised. Will continue to do business with Supply House. Great web site.
Mike
SF Bay area
7 years ago
Verified Buyer
Was this review helpful to you?
So far, so good...
This part is being used in a demanding application. So far, it has exceeded my expectations. I was initially concerned because of its rather inexpensive price.
Jeff
Texas
9 years ago
Verified Buyer
Was this review helpful to you?
Good price. Just what I needed.
Good price. Saved my customer a few bucks.
Beanbag
Green Bay, WI
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: How many amps does the coil draw?
Asked by Herb 8 years ago
Add your answer
Verified Reply- Supply House StaffThis contactor is 30 amps.
