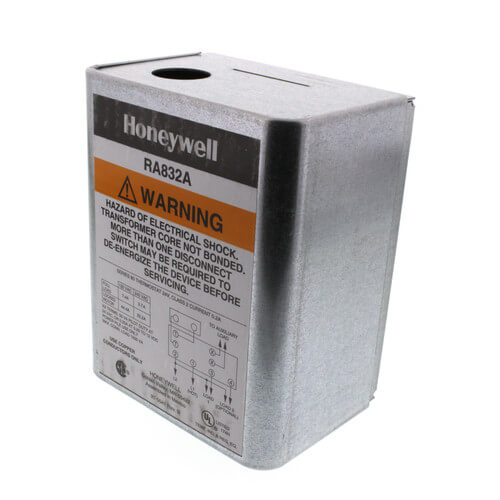

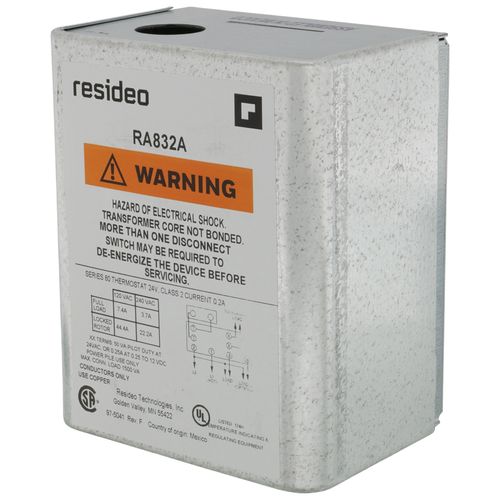

Description
Provide intermediate switching of a line voltage device from a low voltage controller.

Specifications

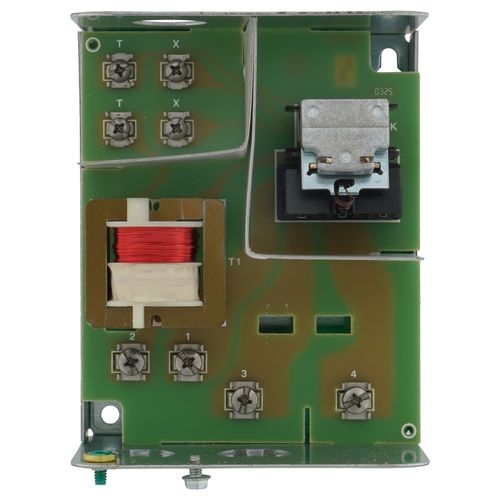

  • Integral transformer provides low voltage power for control circuit.
  • The RA832A is a DPST relay. One relay pole is designed for low voltage or millivoltage (Powerpile) auxiliary load. Two other relay poles are for line voltage loads.

Features
  • Description: Switching Relay with internal transformer, for switching two line voltage loads having a common power source.
  • Application: Provide intermediate switching of a line voltage device form a low voltage controller.
  • Switching Action: DPST; one pole line voltage, the other low voltage or millivolt
  • Coil Ratings Current: 0.4A
  • Coil Ratings Voltage: 24 Vac
  • Temperature Range: 115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.
  • Dimensions: 5 1/4 in. high x 4 1/4 in. wide x 2 5/16 in. deep
  • Electrical Connections: 2-Wire
  • Electrical Ratings (Maximum Input): 5.0 W
  • Electrical Ratings (Primary Voltage): 240V, /5060 Hz
  • Contacts Electrical Rating Main Contacts 120 Vac: 7.4A AFL; 44.4A ALR; 10A Resistive
  • Contacts Electrical Rating Main Contacts 240 Vac: 3.7A ALF; 22.2A ALR; 6.0A Resistive
  • Contacts Electrical Rating Secondary Contacts Pilot Duty Rating: 50 VA @ 24V
  • Contacts Electrical Rating Secondary Contacts Dc Rating: 1A @ 12 Vdc
  • Contacts Electrical Rating Secondary Contacts Millvolt Rating: 300 mA min. @ 750 mV
Hide Description
Manuals (2)
Specs
Application:

Zoning

Zones:

1

Width:

4-1/4"

Height:

5-1/4"

Amperage:

10.2

Voltage:

240v

Depth (Inches):

2-5/16"

Ambient Conditions:

105 F Max for 50 Hz

105°-115°F Max

115 F max for 60 Hz

Relays:

Spst Line Voltage

Switch Action:

DPST; one pole line voltage the other low voltage or millivolt

×
