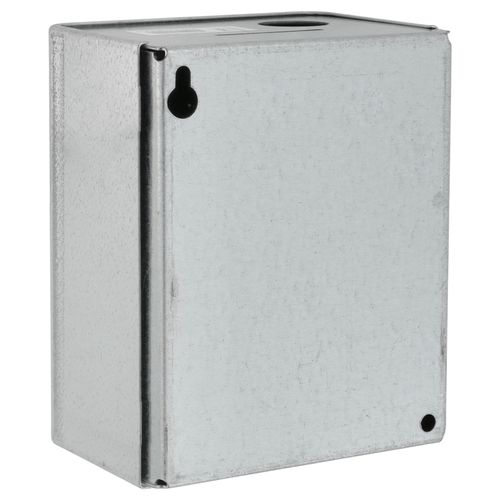

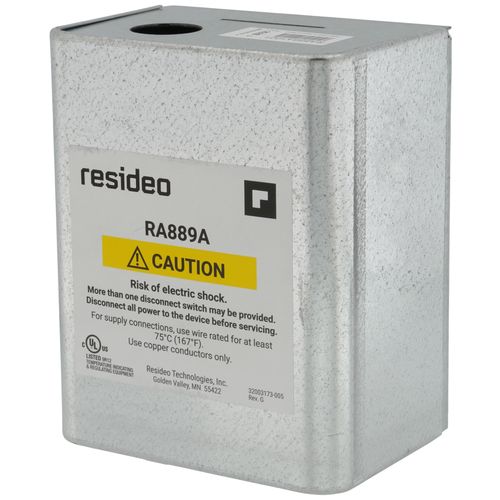

120V, 60 Hz Switching Relay with SPDT switching, RA889A1001
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$92.49 each
In Stock
Get 5 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
120V
SPDT, plus PowerPile® rated low voltage SPST relay
1
5-1/4"
10.2 Amps
120v
Description
–
Provide intermediate switching of a line voltage device from a low voltage controller.
Features
Features
- High load switching capability.
- Troubleshooting LED.
- Push-to-test button.
- Replaceable transformer fuse.
- Long-life DC relay drive control technology.
- Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control, or with internal 24 V transformer supply.
- One model replaces many Honeywell models.
- Secondary of transformer protected by replaceable 1A automotive fuse
- Description: Enclosed switching relay with internal transformer, Spdt line voltage relay, plus Spst low voltage relay with Powerpile rating. 120V/60Hz 15 AFL/30 ALR ratings one line voltage contacts
- Application: For switching of line- and low-voltage devices from a line- or low-voltage controller
- Electrical Connections (main): No. 8 captive wire clamp screw terminals.
- Switching Action: SPDT, plus PowerPile® rated low voltage SPST relay
- Thermostat Heat Anticipator Setting: 0.12A
- Transformer Primary Rating: 120 Vac, 60 Hz
- Transformer Secondary Rating: 24 Vac, 12 VA max., 9 VA available for external load. Secondary protected by replaceable 1A automotive fuse.
- Temperature Range (F): (Ambient) -20 F to +120 F
- Temperature Range (C): (Ambient) -29 C to +49 C
- Thermostat Compatibility: Honeywell electromechanical and electronic 2- or 3-wire
- Dimensions (in.): 6 1/4 in. high x 4 7/16 in. wide x 3 1/2 in. deep
- Dimensions (mm): 159 mm high x 118 mm wide x 89 mm deep
- Operating Humidity Range (% RH): 0 to 90% RH, non-condensing
- Electrical Ratings (Primary Voltage): 120V, 60 Hz
- Replacement Parts: 32002190-001 Circulator Replacement Relay
- Contacts Electrical Rating Contacts Max. Connected Load: 2000 VA
- Contacts Electrical Ratings (120 Vac AFL): 15A
- Contacts Electrical Ratings (120 Vac ALR): 30A
- Approvals, Canadian Underwriters Laboratories: Listed: Guide No. XAPX7.
- Includes: Integral transformer, enclosure
- Approvals, Underwriters Laboratories Inc: Listed: File No. E4436, Guide No. XAPX
Specs
–
| Application: | Zoning |
|---|---|
| Number of Zones: | 1 |
| Width: | 4-1/4" |
| Height: | 5-1/4" |
| Amperage: | 10.2 |
| Power Method: | 120V |
| Voltage: | 120v |
| Depth (Inches): | 2-5/16" |
| Ambient Conditions: | 105°-115°F Max -20 F to +120 F |
| Relays: | Spst Line Voltage |
| Switch Action: | SPDT, plus PowerPile® rated low voltage SPST relay |
| Thermostat Compatibility: | Electronic 3-wire Electronic 2-wire |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Zones
Product Reviews
4.8 out of 10 reviews
100% would recommend this product
5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 10 reviews
Fit well
Easy setup
John
Pennsylvania
6 months ago
Verified Buyer
Was this review helpful to you?
Product as described, fast shipping, great information
Used to run circulation pump, with circuit to signal boiler to turn on
Boiler Dr
PA
2 years ago
Verified Buyer
Was this review helpful to you?
Perfect replacement for old relay
I bought this relay because I needed one with a c wire connection. The new relay was the exact same size as my old relay. Even the mounting holes lined up. The unit was easy to wire and works great.
Tom
Glen Aubrey, NY
5 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Yes this is a modern upgrade to the old relays
I have yet to figure out how to have my WIFI thermostats always powered, and also have the boiler low temperature cutout, shut off the circulators. I have them on and because the loops are small, the boiler does catchup.
John the farmer
Boonville, NY
7 years ago
Verified Buyer
Was this review helpful to you?
Awesome
Been working for weeks now
Bornio
Nj
8 years ago
Verified Buyer
Was this review helpful to you?
Worked great with my Ecobee and Taco zone controller
Used this as a transformer and isolation relay so I could power my ecobee and use it with a Taco 3 zone controller. Worked great for my needs.
Kerry
Vermont
8 years ago
Verified Buyer
Was this review helpful to you?
Versatile Controller
Retrofitted two of these in my hydronic heating system, coupled with a zone control valve. The system was built with pumps that do not isolate the water heater and one other zone when turned off (the heat continues to flow driven by the main circulator pump). By using these units (with one obvious jumper) I was able to have an additional low voltage zone valve (normally closed to isolate the loop) open first (using the delay part of the unit) and then apply power to the pump (120v), thereby preventing "dead-heading" the pump.
These units have been running constantly for about a year now with no problems (I just purchased a third to keep as a backup as these are now critical parts of my system).
Snowman
Park City, Utah
11 years ago
Verified Buyer
Was this review helpful to you?
Worked nice

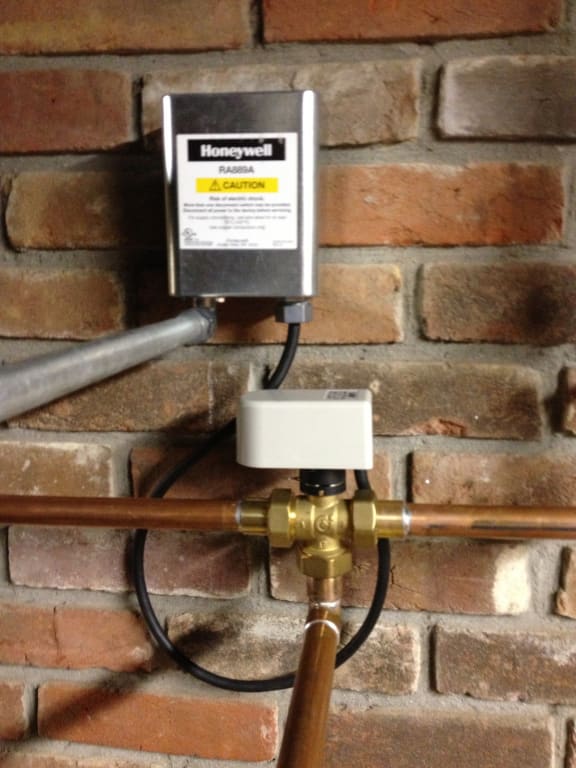

Worked well to control a motorized 3 way diverter valve I installed.
Barry
Kentucky
13 years ago
Verified Buyer
Was this review helpful to you?
Flexible unit - works well
My project was to add zone isolation valve to a hydronic circuit in which the boiler pressure caused the water to flow through the loop even when the loop's pump was not running. I used this relay to take the 120V power for the pump (disconnected), convert it to 24V for the valve (see accessories) and then when the valve opened (switch built into this particular valve) to 120V to activate the pump (using the built-in relay). Neat system, solved the problem completely.
Snowman
Park City, UT
13 years ago
Verified Buyer
Was this review helpful to you?
So far so good
Used this relay to control the duct blower for a wood stove (boiler) heating system install. Installation was easy, instructions were fairly self explanitory. So far there have been no issues, only time will tell though.
Dereck
Michigan
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does this switch relay has a R C W Y pins? If so, It means I can use it for electrical or gas furnace/ac!
Asked by AJ 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno it does not. see the link below: http://s3.supplyhouse.com/product_files/RA889A1001-Install.pdf
Was this review helpful to you?
Q: can this relay use on a hotwater system for a circulator pump on a hot water boiler
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe RA889A Switching Relay provides intermediate switching of line- and low-voltage devices from a line- or low-voltage controller and is typically applied in hydronic heating systems.
Was this review helpful to you?
