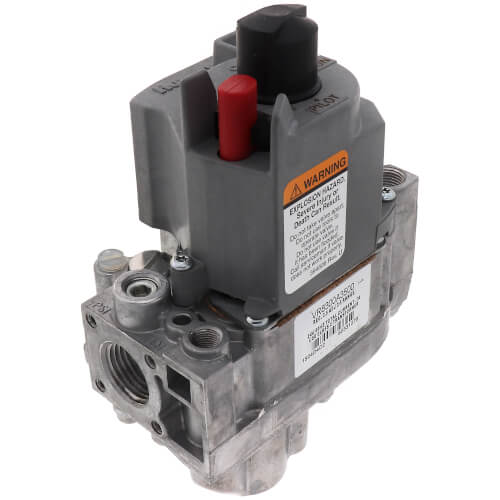

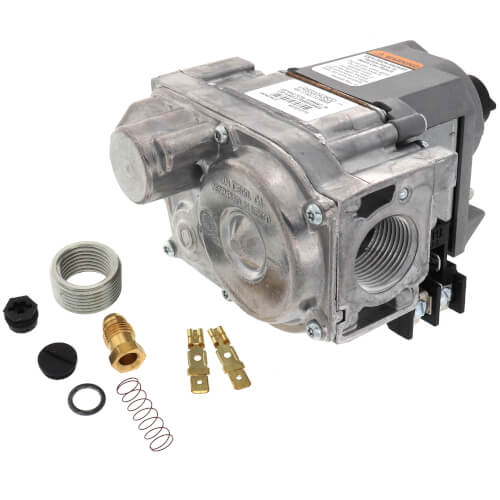

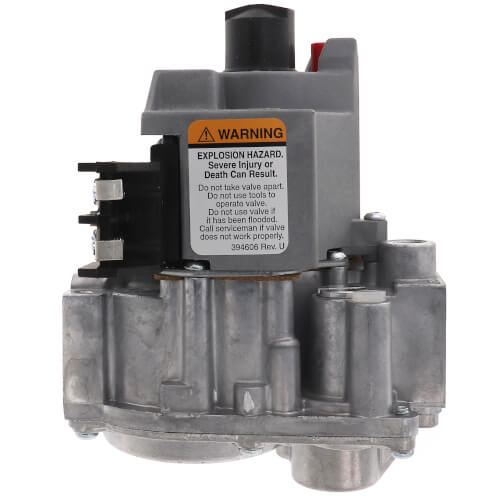

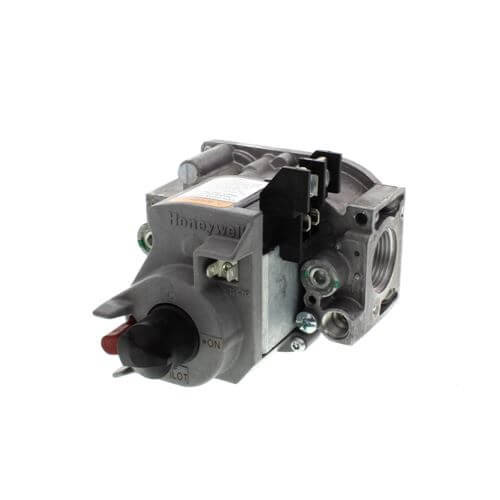

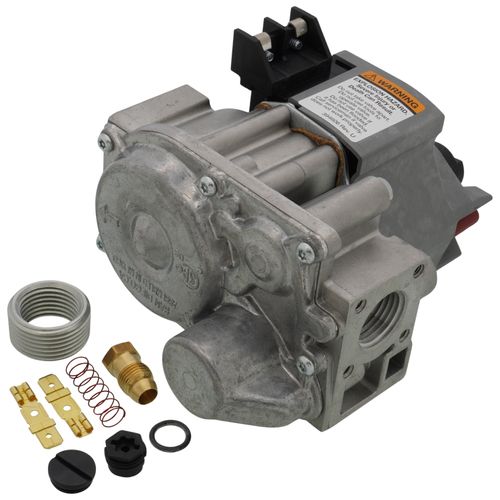

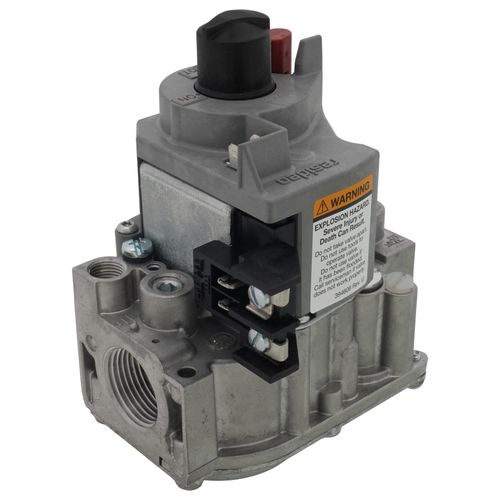

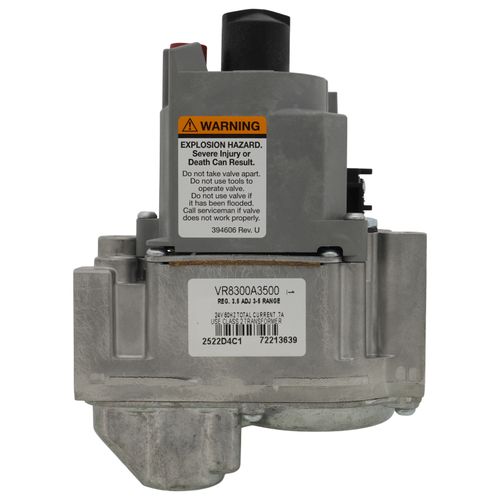

Standard Dual Standing Pilot Gas Valve - 1/2" x 3/4", VR8300A3500
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$177.79 each
In Stock
Get 54 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (5)
This item replaces: 411-924-000
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2" NPT, 1/2"
3/4"
190000 BTU Capacity
24V
Standing Pilot
Description
–
Note: This is the direct replacement of Slant/fin 411-925-000
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features:
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features:
- Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through with Flange |
| Voltage: | 24V |
| Capacity (BTU): | 190000 |
| Inlet Size: | 1/2" NPT 1/2" |
| Outlet Size: | 3/4" |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Fuel Type
Voltage
Capacity (BTU)
Inlet Size
Outlet Size
CURRENT ITEM
Natural Gas
24V
190000
1/2" NPT
1/2"
1/2"
3/4"
You May Also Need
Product Reviews
4.85 out of 20 reviews
100% would recommend this product
5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 20 reviews
Good reliable gas valve
I have used this gas valve as a replacement for several different standing pilot furnace and boilers in our townhome community. It works great.
SK
Central PA
6 months ago
Verified Buyer
Was this review helpful to you?
Bought as a replacement for VR8300H3107
I couldn't find a replacement for VR8300H3107 on a Columbia Gas Boiler.
Then saw this one which has the exact specs, exact fitting, and exact dimensions.
Swapped it and burner fired up right away.
Sam
Baltimore
2 years ago
Was this review helpful to you?
Perfect replacement
Received the item in just a couple days, packaged well and in damaged.
Jim
Rochester, NY
4 years ago
Verified Buyer
Was this review helpful to you?
if need arose i would buy again
a simple gas valve that works like it should. arrived quickly. order was timly and accurate.
toidiman
michigan
5 years ago
Verified Buyer
Was this review helpful to you?
Great product at a very reasonable price. Would buy again.
The valve was an exact replacement and fit in perfectly with absolutely no problems.
Iceman
Boonton NJ
6 years ago
Verified Buyer
Was this review helpful to you?
Fast service and quality product
I was able to find the right product at a good price. It arrived when they said it would and it was professionally packaged with parts and user guide. My furnace was up and running in an hour.
Don
IL
6 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Great item at great price and quick shipping, too!
Needed the control valve immediately, ordered it and received it within 2 business days. The quality of the part is great and new in the original box. Supply House makes it convenient to purchase on-line.
the dalamar
Pennsylvania
7 years ago
Verified Buyer
Was this review helpful to you?
I would like to buy it again.
excellent product.
Chris
MA
7 years ago
Was this review helpful to you?
ontime good price easy install
I tried this and the company first time great product good price fast shipping i only wish the location i had to install this was as easy.
mrfixit
dumont co
8 years ago
Verified Buyer
Was this review helpful to you?
Good gas Valve
Order this if you need it. the shipping was good. The valve was correct like my old one .5 in and .75 out it came with an adapter that has threads on both sides and just threads right into the valve, it was easy to do. Pretty straight forward to install. No issues with it so far. good thanks
R
pittsburgh, pa
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
7 Questions7 Questions
Q: I have a VR800A 1020 is this the replacement for it, also were is the thermocouple connection and pilot located.
Asked by boiler crazy 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffThat is the closest replacement for the VR800A1020, we do not have info on installation of these valves.
Was this review helpful to you?
Q: Is this a replacement for a VR800A 1012? Thanks
Asked by Don 12 years ago
Add your answer
Verified Reply- AnonymousYes this is the replacement for that part.
Was this review helpful to you?
Q: Will this valve work as a replacement for my valve which is VR800 1178
Asked by Rick 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, VR8300A3500 is the direct cross reference of VR800A1178.
Was this review helpful to you?
Q: Is this valve a direct replacement for the VR8300A 3153?
Asked by Mike 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it is.
Was this review helpful to you?
-
yes this gas value is a direct replacement for VR8300A 3153? works great & great price. Thanks PexSupply!!
Was this review helpful to you?
Q: Under description in mentions "Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves". Under specifications it says Includes: One 3/4 x 1/2 in. reducer bushing 393691 Natural to LP gas conversion kit. A previous person asked what conversion part is needed and they were told part# 393691 is needed. So is conversion kit 393691 included or not?
Asked by Brewer 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe 393691 NG to LP conversion kit is included. Sorry for any confusion.
Was this review helpful to you?
- Another PexSupply Customer
Yes it is included with the valve; that part number references the kit itself if you need an extra for some reason.
Was this review helpful to you?
- Another PexSupply Customer
Yes, it was included and I had to rerun the extra one I bought. Sent from my iPod
Was this review helpful to you?
- Another PexSupply Customer
When I ordered that gas valve it already had the coupler to reduce it but I'm pretty sure the description says that there is a retrofit kit with it Sent from my HTC smartphone on the Now Network from Sprint!
Was this review helpful to you?
Q: I would like to order this part but I need a natural gas to liquid propane conversion kit. If you could email me the part number for the conversion kit I would appreciate it. Thanks.
Asked by Rod 15 years ago
Add your answer
Verified Reply- PexSupply Staff393691 is the part number for the NG to LP conversion kit.
Was this review helpful to you?
- Anonymous
The part number you will need is 393691.
Was this review helpful to you?
Q: CAN I USE THIS VALVE AS REPLACEMENT FOR HONEYWELL VR8440P-403P VALVE? IF NOT, WHAT VALVE CAN I USE?
Asked by aj 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe closest part number we can reference to the one you gave is VR8440P4035. It is replaced by part VR8304P4504.
Was this review helpful to you?
