Description
Overview

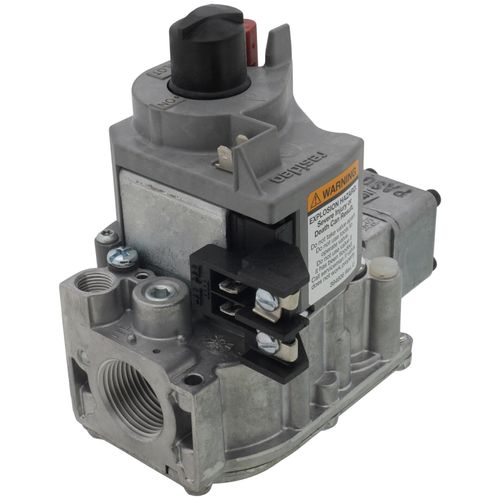

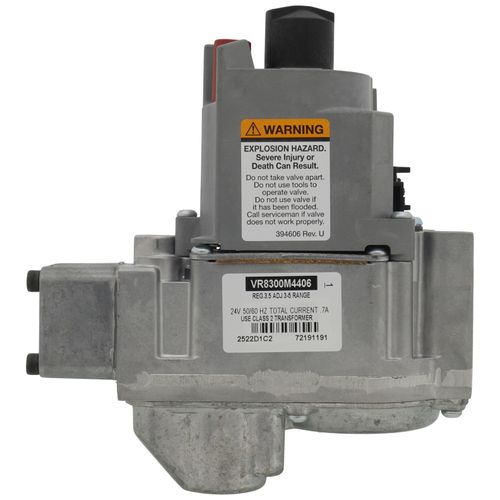

Gas valves for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Features
  • Gas valves include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
  • Compact size.
  • Provide two automatic valves.
  • Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
  • Meets codes requiring dual safety shutoff.
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves, not for step opening gas valves.
  • All adjustments, wiring connections and pilot outlet are accessible from top of control.
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
  • Compatible with ECO connector.
  • LITE-RITE (OFF-PILOT-ON) lighting sequence.

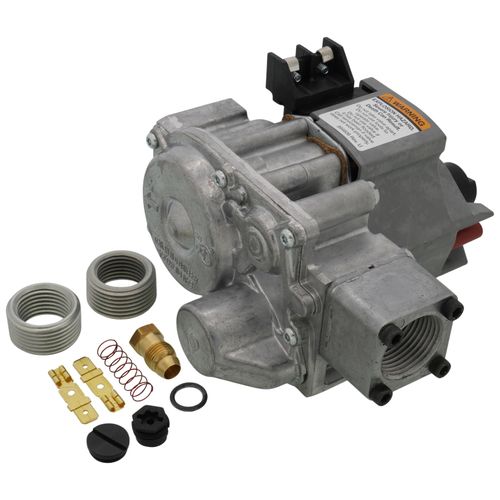

Includes
  • Two 3/4" to 1/2" reducer bushings
  • One natural to LP conversion kit
Read more
Specs
Ignition Type:
Standing Pilot
Inlet Size:
3/4"
Outlet Size:
3/4"
Voltage:
24v
Capacity (BTU):
200000
Gas Type:
Liquid Propane
Natural Gas
Min Temp (F):
-40°F
Max Temp (F):
175°F
×
