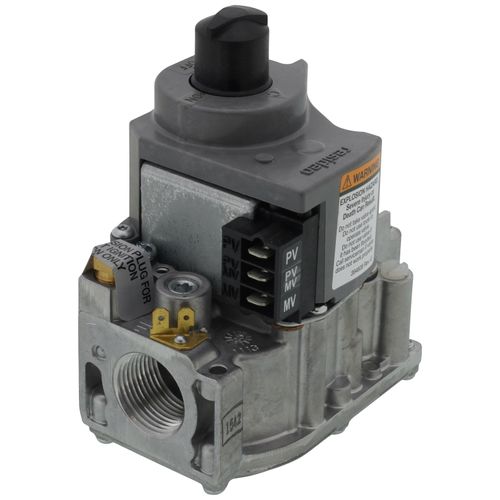

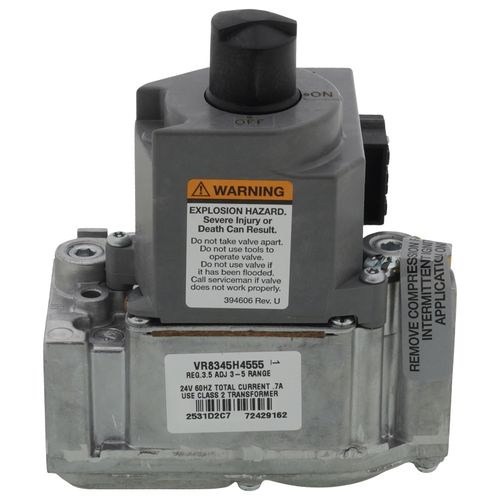

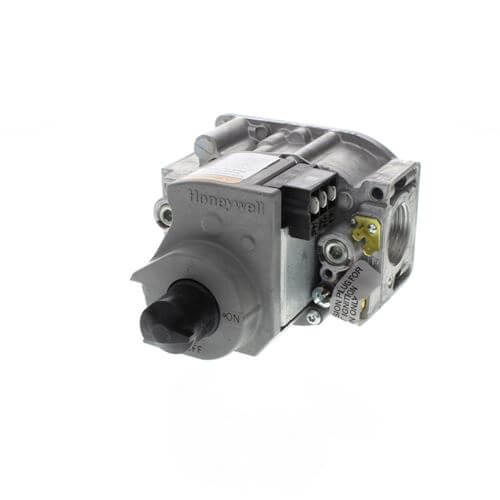

Slow Opening Dual Direct Ignition/Intermittent Pilot Gas Valve, VR8345H4555
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$215.57 each
In Stock
Order by today, receive Tuesday
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
3/4"
3/4"
300000 BTU Capacity
24V
Intermittent Pilot, Direct Spark Ignition
Description
–

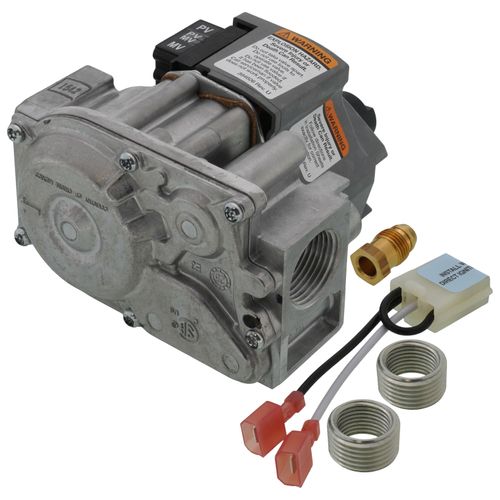

Includes: Two 3/4 x 1/2 in. reducer bushings, natural to LP Conversion Kit
Product Overview:
Product Features:
Product Specifications:
Product Overview:
- Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.
Product Features:
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
- Replaces virtually any IP, HSI, or DSI gas control
- For use with natural or manufactured gas or LP gas
- Includes converter kit to adapt from natural to LP gas
- Compact size
- All adjustments and wiring connections accessible from top of control
- Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
- Internal inlet screen blocks contaminants in gas line from entering valve
Product Specifications:
- Description: 24 Vac Dual Direct Ignition/Intermittent pilot Gas Valve with 3/4 in. x 3/4 in. inlet/outlet, Slow opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Direct Ignition
- Ignition Type: Intermittent Pilot
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
- Body Pattern: Straight-through
- Opening Characteristics: Slow Opening
- Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Temperature Range (F): -40 F to +175 F
- Temperature Range (C): -40 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
- Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025007
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 300000 |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
| Ignition Type: | Intermittent Pilot Direct Spark Ignition |
