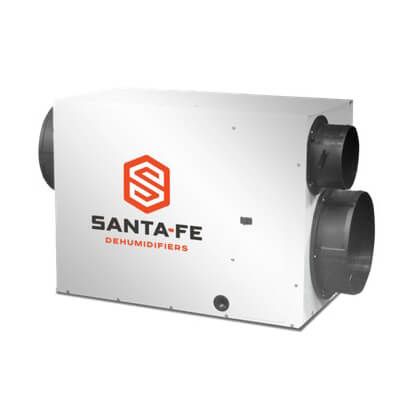

Ultra98 Whole House High-Efficiency Ventilating Dehumidifier
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
4034240 has been discontinued
Discontinued January 18, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
120v
6 Year Warranty
670 Watts
320 CFM
R-410A
Description
–
Ultra98 Whole House High-Efficiency Ventilating Dehumidifier
The Santa Fe Ultra98 is designed to deliver exceptional indoor air quality by providing dedicated moisture control, fresh air mechanical ventilation and superior air filtration (MERV-13) to the entire home. The unit features an extremely well-insulated, compact horizontal cabinet (optional vertical discharge) for the ultimate in quiet operation.
Optional fresh outdoor air may be ducted to the unit. This provides fresh air to dilute pollutants and maintain high oxygen content in the air. The amount of fresh air ventilation can be regulated by a variety of dampers and controls.
Product Features
Product Dimensions
The Santa Fe Ultra98 is designed to deliver exceptional indoor air quality by providing dedicated moisture control, fresh air mechanical ventilation and superior air filtration (MERV-13) to the entire home. The unit features an extremely well-insulated, compact horizontal cabinet (optional vertical discharge) for the ultimate in quiet operation.
Optional fresh outdoor air may be ducted to the unit. This provides fresh air to dilute pollutants and maintain high oxygen content in the air. The amount of fresh air ventilation can be regulated by a variety of dampers and controls.
Product Features
- Features a horizontal configuration with optional vertical discharge
- Designed for quiet operation
- Engineered for low temperature operation providing comfort year round
- Use of DEH 3000/R digital control for outdoor air ventilation and humidity control
- Superior MERV-13 filtration to improve indoor air quality
- Ducting option for fresh outdoor air ventilation
- Push button reset for transformer protection
Product Dimensions
- W: 14.5"
- H: 19.5"
- D: 32.38"
- Weight: 81. lbs.
Specs
–
| Product Type: | Dehumidifier |
|---|---|
| Type: | Whole House |
| Coverage (Sq Ft.): | 2300 |
| Capacity (Pints/Day): | 98 |
| Current (amps): | 5.9 |
| Wattage: | 670 |
| Voltage: | 120v |
| Air Flow Capacity (CFM): | 320 |
| Operating Temp Range: | 49°F to 95°F |
| Energy Factor: | 2.95 L/kWh |
| Noise Level (dBA): | 47 |
| Refrigerant Type: | R-410A |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 6 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
14 Replacement Parts
Hose, 4025577-01
SKU: 4025577-01
Santa FeDefrost Thermostat
SKU: 4041848
Santa FeImpeller Relay
SKU: 4020924
Santa FeCompressor Strap Plug
SKU: 3551754
Santa FeImpeller Capacitor
SKU: 4035235-02
Santa FeCompressor, 4034888
SKU: 4034888
Santa FeCondenser Coil
SKU: 4035868
Santa FeTransformer, 4022487
SKU: 4022487
Santa FeCompressor Capacitor
SKU: 4033032-03
Santa FeCompressor Overload
SKU: 4027057
Santa FeFilter Drier, 4029510
SKU: 4029510
Santa FeCompressor Relay, 4022484
SKU: 4022484
Santa FeHose Adapter
SKU: 4025569
Santa Fe
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
Great product
Works awesome, quiet and easy to install. Filter, dehumidifies, and circulates air better than expected.
Builder
Pa
2 years ago
Was this review helpful to you?
Excellent
I'm in South Louisiana where on average we are at 94% humidity in the winter and 100% most days during summer. So I didn't want to mess around in this department. The ULTRA98 is a great piece. Excellent build quality, runs quiet, and is a humidity slayer! Keeps my 2200SF single story at 38%RH with ease. The Sante Fe DEH3000 Controller is a must-have for this unit especially if you are rigging fresh air ventilation. I first tried it with my Ecobee Premium, but Ecobee can't do the job or controlling the DEHU and the HVAC properly. I highly recommend this unit.
Lectricman
South Louisiana
2 years ago
Verified Buyer
Was this review helpful to you?
