Description

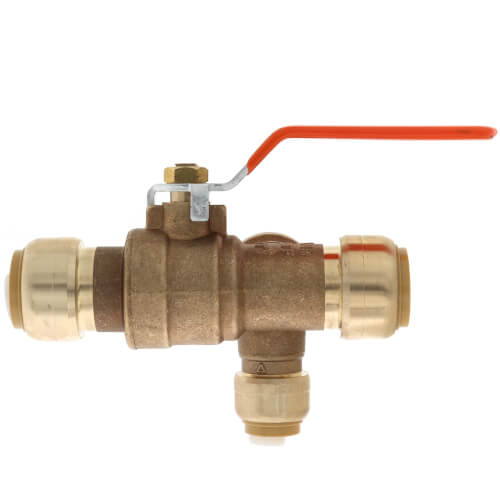

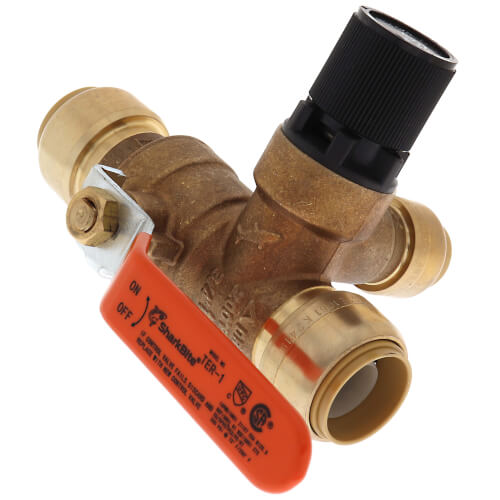

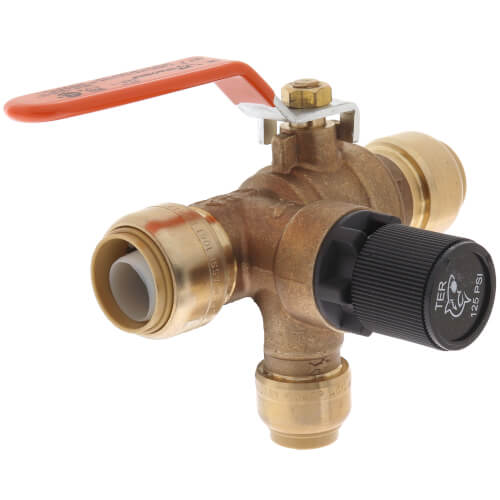

SharkBite's Thermal Expansion Relief Valve eliminates the need for an expansion tank, shut-off valve and fitting. Features a pressure-only safety relief valve designed to protect hot water supply systems where high pressure conditions are likely to occur as a result of thermal expansion.

  • Efficient: Replaces an expansion tank, shut-off valve and fitting.
  • Versatile: Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
  • Quick Installation: Faster install time and ease of use reduces risk of errors.

    Features:
    • Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
    • Can be installed in wet lines.
    • Can be rotated for easier installation.
    • No special tools, crimping, glue or soldering is needed.
    • Ideal for working in tight spaces.
    • Remove using a Disconnect Clip or Disconnect Tongs (both sold separately).
    • 1/2 in. outlet drains at 125 PSI. Rated for 200 psi and 200°F (93°C).
    • 5-year warranty.
    • Hide Description
    Manuals (2)
    Specs
    Size:

    3/4" x 3/4" x 1/2"

    Lead Free:

    Yes

    Max Inlet Pressure:

    200 PSI

    Max Temp (F):

    200°F

    Pressure Set Point:

    125 psi

    Warranty:

    5 Year

    ×
