UR072 has been discontinued
Discontinued May 21, 2026
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: U072, U072LF
Direct Replacement:

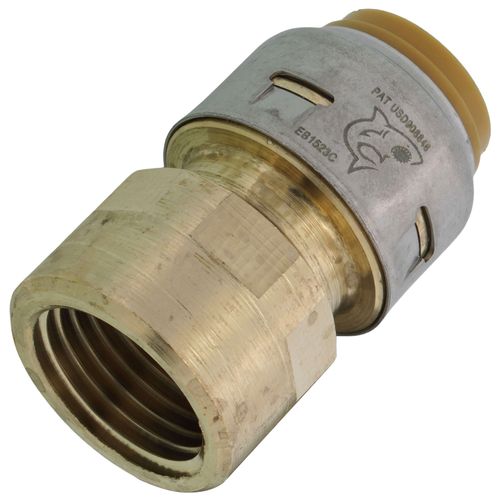

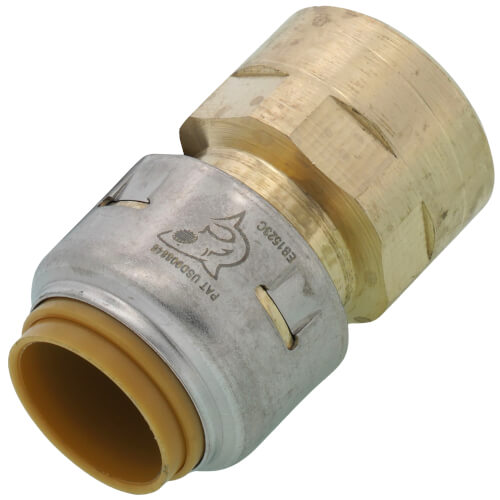

1/2" SharkBite Max x Female Adapter (Lead Free), UR072A
Product Highlights
–
1/2"
Brass
OD Controlled Copper, PEX, CPVC
Push Fit
NSF Standards Met
200 MAX PSI
Description
–
SharkBite Max female adapters have an innovative push-to-connect design that enables quick and easy transitions between CTS pipe to an MNPT threaded connections. Ideal for working in tight spaces and easier to use, Max female adapters make installs more efficient.
Features:
Features:
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion force compared to SharkBite 1st Generation fittings.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
- No special tools, crimping, soldering or glue required.
- Can be rotated after installation.
- No tube liner required for PEX.
- Rated to 200°F and 250 psi.
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
- 5-year warranty when properly installed with HDPE SDR-9.
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
Specs
–
| Size: | 1/2" |
|---|---|
| Material: | Brass |
| PEX Size: | 1/2" |
| Application: | Heating |
| Max Pressure (PSI): | 200 |
| Warranty: | 25 Year |
| Thread Type: | Female |
| Standards Met: | NSF |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | OD Controlled Copper PEX CPVC |
| Max Temp (F): | 200°F |
| Thread Size: | 1/2" |
| Lead Free: | Yes |
| Insertion Depth: | 15/16" |
