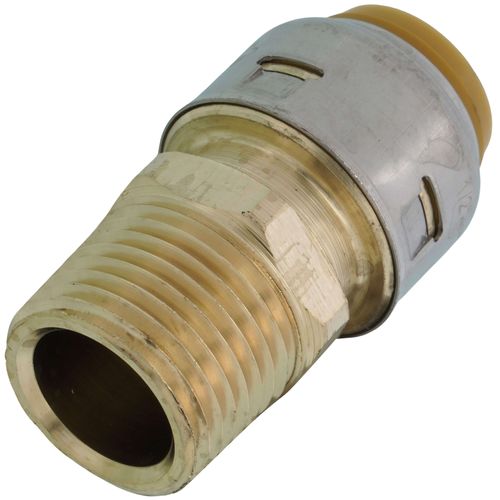

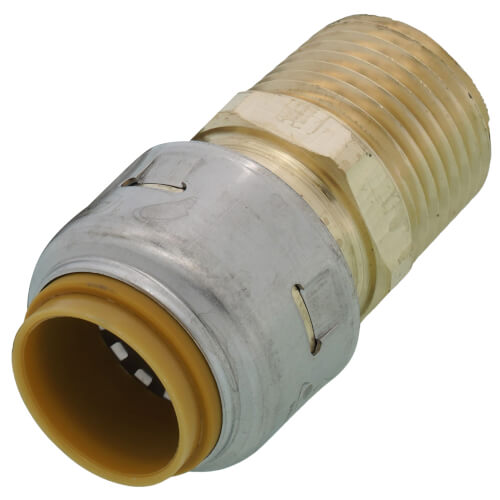

1/2" x 1/2" Sharkbite Max Pipe to Male Pipe Thread Connector (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
UR120 has been discontinued
Discontinued April 30, 2026
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: U120LF, U120
Direct Replacement:
1/2" x 1/2" SharkBite Max Pipe to Male Pipe Thread Connector (Lead Free), UR120A
Product Highlights
–
1/2"
Brass
OD Controlled Copper, PEX, CPVC
Push Fit
NSF Standards Met
200 MAX PSI
Description
–
SharkBite Max push-to-connect male adapters are a fast way to transition between CTS pipe and an FNPT threaded connection. Ideal for working in tight spaces, Max male adapters enable more efficient install times and ease of use reduces installation errors.
Features:
Features:
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion force compared to SharkBite 1st Generation fittings.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
- No special tools, crimping, soldering or glue required.
- Can be rotated after installation.
- No tube liner required for PEX.
- Rated to 200°F and 250 psi.
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
- 5-year warranty when properly installed with HDPE SDR-9.
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
Specs
–
| Size: | 1/2" |
|---|---|
| Material: | Brass |
| PEX Size: | 1/2" |
| Application: | Heating |
| Max Pressure (PSI): | 200 |
| Warranty: | 25 Year |
| Thread Type: | Male |
| Standards Met: | NSF |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | OD Controlled Copper PEX CPVC |
| Max Temp (F): | 200°F |
| Thread Size: | 1/2" |
| Insertion Depth: | 15/16" |
