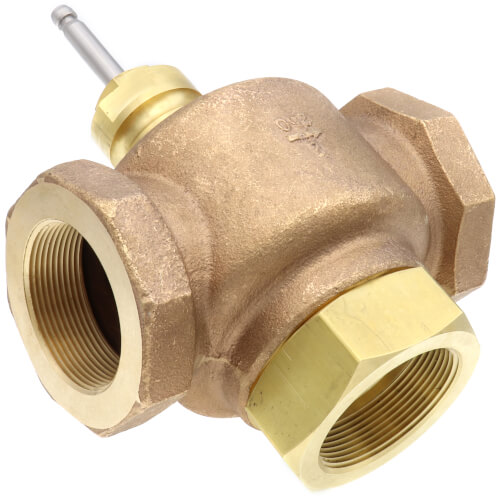

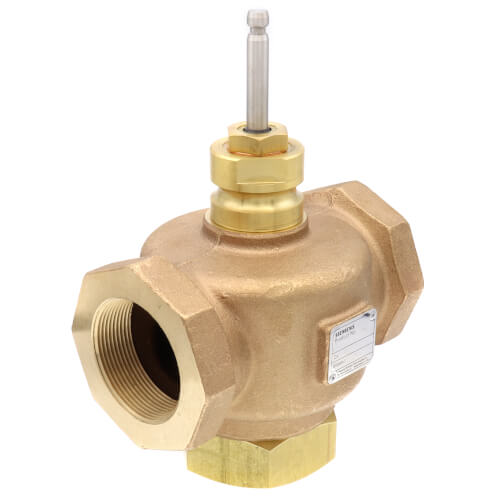

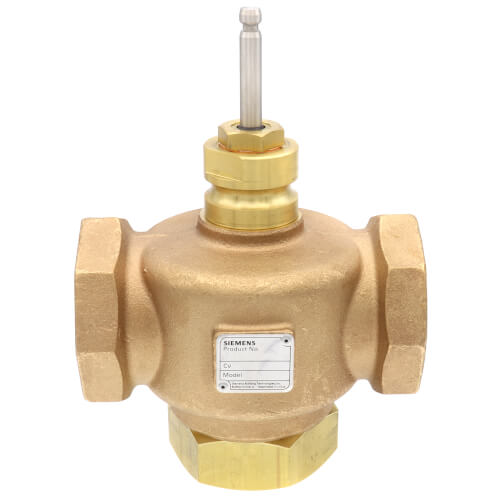

2" 3-Way Brass Mixing Valve Body, Female x Female (40 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$521.58 each
In Stock
Get 12 Mon, Jun 8
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
40 Cv
250°F Max Temp
20°F Min Temp
3-Way
2" Connection
Description
–
Designed to work with either pneumatic or electronic actuators with a 3/4-inch (20 mm) stroke, the Flowrite Three-way Globe Valves are available in ANSI Class 250.
Features:
Applications:
Flowrite Three-way Globe Valves are recommended for mixing applications. The upper port is closed in the normal stem up, failed position. The lower port is open in the stem up position. This valve can also be used for throttling or bypass coil control application. However, a pump is recommended on the coil circuit to improve the heat transfer characteristic of the coil and for freeze protection.
Features:
- Direct-coupled, universal bonnet
- Equal percentage (NC port) or linear flow (NO port) characteristics
- Brass or stainless steel trim
- Accepts any 3/4-inch Flowrite pneumatic or electronic actuator
- Greater than 100:1 range ability
- ANSI Leakage Class IV (0.01% of Cv)
- Cartridge-type packing for easy service
- FxF or UFxUF end connections available
- Orderable as a valve only or as a complete valve/actuator assembly
Applications:
Flowrite Three-way Globe Valves are recommended for mixing applications. The upper port is closed in the normal stem up, failed position. The lower port is open in the stem up position. This valve can also be used for throttling or bypass coil control application. However, a pump is recommended on the coil circuit to improve the heat transfer characteristic of the coil and for freeze protection.
Specs
–
| Application: | Point of Source |
|---|---|
| Product Type: | Globe Valve |
| Body Pattern: | 3-Way |
| Flow Capacity (Cv): | 40 |
| Connection Size: | 2" |
| Connection Type: | FNPT x FNPT |
| Material: | Brass |
| Min Temp (F): | 20°F |
| Max Temp (F): | 250°F |
