0010-F3Y has been discontinued
Discontinued August 15, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
Product Highlights
–
230V
1/8 HP
3 Year Warranty
Flanged x Flanged Connection
32 MAX GPM
150 MAX PSI
Description
–

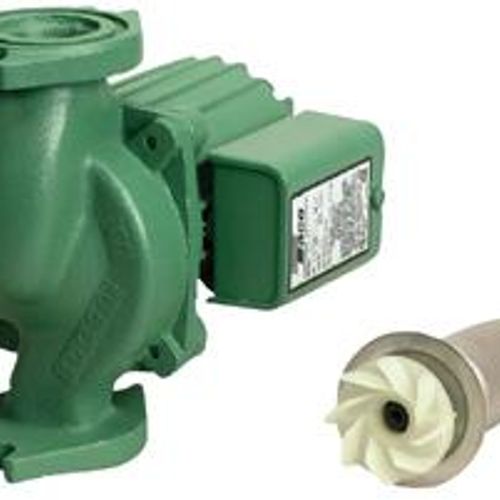

The Taco 0010 is designed for a wide range of large residential or light
commercial water circulating applications. Typical uses include hydronic
heating, radiant heating, primary-secondary loops, indirect water heaters,
chilled water cooling, and potable hot water systems. The Stainless Steel
0010 is designed for all open-loop, fresh water systems. The unique replaceable
cartridge contains all of the moving parts and allows for easy service,
instead of replacing the entire circulator. Compact, direct-drive, low power
consumption design makes it ideal for high-efficiency jobs.
Applications:
Features:
Applications:
- Hydronic Heating
- Radiant Heating
- Primary-Secondary Loops
- Indirect Water Heaters
- Chilled Water Cooling
- Potable Hot Water Systems
Features:
- Standard high capacity output - Compact design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique Replaceable Cartridge design (Field serviceable)
- Self Lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Universal flange to flange dimensions
- Cast Iron or Stainless Steel construction
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.1 |
| Application: | Heating |
| Voltage: | 230V |
| Max Pressure (PSI): | 150 |
| Type: | Pump |
| Horse Power: | 1/8 |
| Connection Size: | 1-1/4" 3/4" 1-1/2" 1" |
| Max Flow (GPM): | 32 |
| Max Head (Ft): | 10 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
