Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

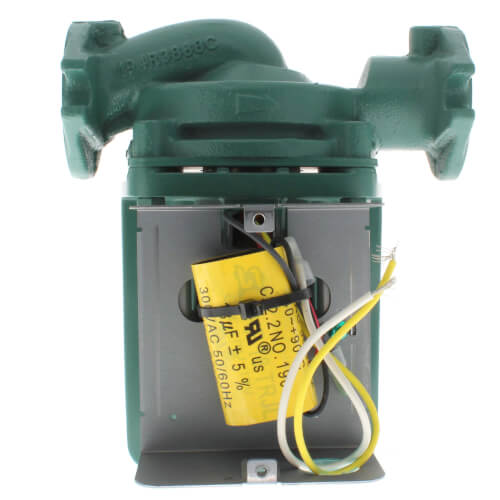

The High Velocity series Taco 0013 Cartridge Circulator is designed for quiet, efficient operation in high head / high flow applications for Large Residential / Light Commercial Hydronic heating, Radiant heating, Chilled Water cooling and Domestic fresh water systems. The exclusive ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0013 is ideal for high efficiency jobs where space is a premium.

Features
  • Maximum Temperature Control: Taco's 00-VS circulators support an adjustable setpoint as well as an adjustable temperature differential. Whether you need a fixed temperature or a set temperature drop, this circulator has you covered.
  • Direct and Reverse Acting: Taco's variable speed setpoint circulators are designed for both direct acting and reverse acting applications. These versatile pumps can be set to increase speed when temperatures drop or when they rise depending on the needs of your system.
  • Maintenance Free: The beauty of Taco's "00" series circulators is in the simplicity. The self-lubricating design improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design: All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency: In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
Read more
Specs
Material:
Cast Iron
Amperage:
2
Application:
Heating
Voltage:
115v
Type:
Var. Speed Pump
Max Pressure (PSI):
125
Horse Power:
1/6
Connection Size:
3/4"
1-1/4"
1-1/2"
1"
Flow Range (GPM):
0-34
Max Flow (GPM):
34
Head Range (ft.):
0-33
Max Head (Ft):
33
Hertz:
60
Phase:
1
RPM:
3250
Temperature Range (F):
40° to 230°F
Connection Type:
Flanged
Warranty:
3-Year Warranty
×
