Apply to be a TradeMaster!

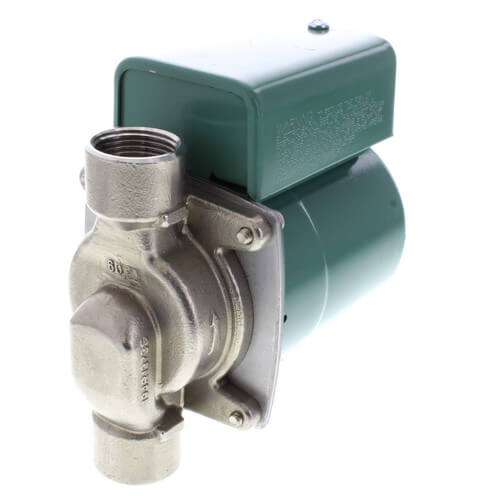

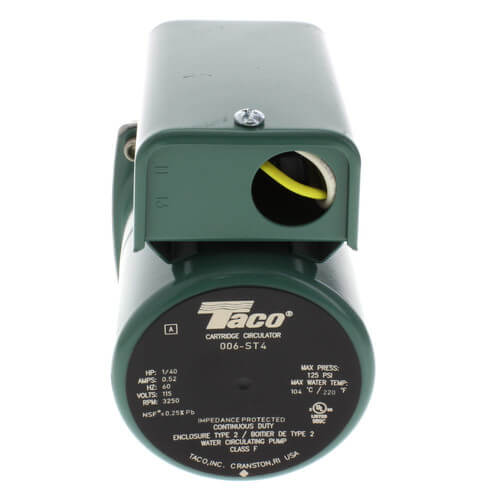

006 (3/4" Threaded) Stainless Steel Circulator 1/40 HP
Hover image to zoom
006 (3/4" Threaded) Stainless Steel Circulator 1/40 HP
Hover image to zoom
$322.35 each
In Stock
In Stock
Get 137 Wed, Jul 24
More Available
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
115V
Horse Power icon
1/40 HP
Warranty icon
3 Year Warranty
Connection Type icon
Threaded Connection
Max Flow (GPM) icon
10 MAX GPM
Max Pressure (PSI) icon
125 PSI

Description

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-9 Feet
Minimum Fluid Temperature: 40F (4C)
Maximum Fluid Temperature: 220F (104C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1 , 1-1/4", 1-1/2" CI Flanged or 1/2 Swt, 3/4" Swt, 3/4 NPT, or Union

The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Direct Drive-Low Power Consumption
Unique Replaceable Cartridge Design-Field Serviceable
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Cast Iron, Flanged or Bronze Construction with Sweat, Threaded or Union Connections

Typical Applications
Hydronic heating
Domestic hot water recirculation
Hydro-air heating/cooling
Heat recovery units
Water source heat pumps
Drain down open loop solar systems
Potable water applications

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP

Specs

Replaces:

006-BT4

Material:

Stainless Steel

Application:

Heating

Amperage:

0.52

Horse Power:

1/40

RPM:

3250

Voltage:

115V

Hertz:

60

Phase:

1

Max Pressure (PSI):

125

Connection Size:

3/4"

Connection Type:

Threaded

Type:

Pump

Max Head (Ft):

9

Head Range (ft.):

0-9

Flow Range (GPM):

0-10

Max Flow (GPM):

10

Temperature Range (F):

40°F - 220°F

Warranty:

3 Year
