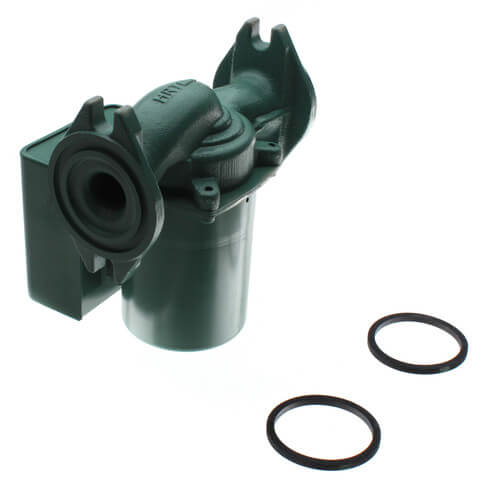

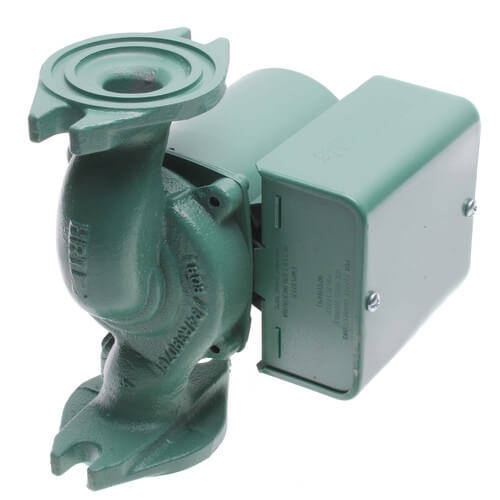

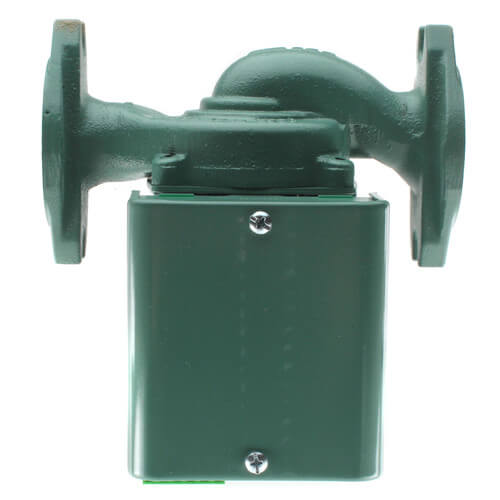

007 Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/25 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/25 HP
Flanged x Flanged Connection
17 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Features
Typical Applications
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 007-042RP
valve Assembly Trans/Relay: 0010-025RP
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability

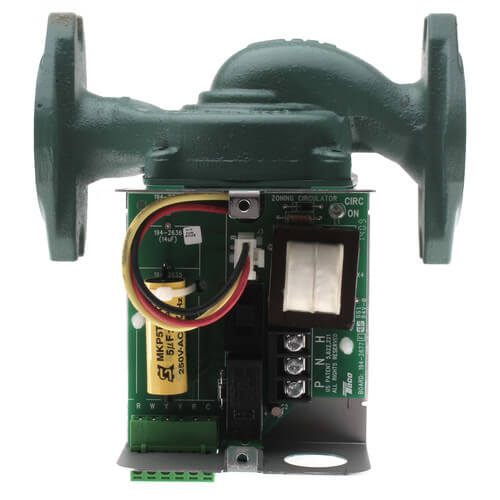

- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 007-042RP
valve Assembly Trans/Relay: 0010-025RP
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 0.71 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/25 |
| Connection Size: | 1-1/4" 1-1/2" 3/4" 1" |
| Flow Range (GPM): | 0-17 |
| Max Flow (GPM): | 17 |
| Max Head (Ft): | 8.5 |
| Head Range (ft.): | 0-8.5 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
6 Replacement Parts
Sleeve Gasket, 920-007RP
SKU: 920-007RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Good product
Came as promised fair price
William
NY
7 years ago
Verified Buyer
Was this review helpful to you?
I would by this product again
Very easy to change,last a long time
Pete the greek
NY
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
the internal check valve streamlines the installation
Smoke Chaser
Lincolnton NC
10 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again and again
this product is a good zone control W/Integral flow check and Universal thermostat compatibility ,will heat single zones that would not heat up before in a circuit, it is a great addition to any radiant heating.
fix her
NL Canada
15 years ago
Verified Buyer
Was this review helpful to you?
Working great.
So far this pump has done a very good job with our radiant heating system.
Rick
Canton IL
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: Does this circulator have the same zone failure feature as in the priority zone relays? That is to say, does it revert back to allowing the other zones to run after a certain set period of time should the priority zone fail for one reason or another?
Asked by Ray 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffUnfortunately this pump will not have the feature to change from priority to heating automatically.
Was this review helpful to you?
Q: Can I use this pump to run a Taco Sentry Zone Valve? I have Ghost Flow on a Zone and need a Zone Valve to stop it.
Asked by Kicker 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffdepends on your controls and what else needs the 24V output
Was this review helpful to you?
Q: i have a three zone heat system w zone valves two of which are not functioning. i am adding a indirect water tank and want to know if i can use use this circulator to replace the zone valves(3) and run the new indirect tank as well. i know i have to change configs. etc. my question relates to control and power of this unit.thank you
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffFor priority you will want to use a SR504-2 with standard 007-F5-7IFC circulators.
Was this review helpful to you?
