$513.82 each
In Stock
Get 7 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (5)
This item replaces: 009-F5-1IFC
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/8 HP
3 Year Warranty
Flanged x Flanged Connection
10 MAX GPM
125 MAX PSI
Description
–
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Performance Data
Flow Range: 0-10 GPM
Head Range: 0-34 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

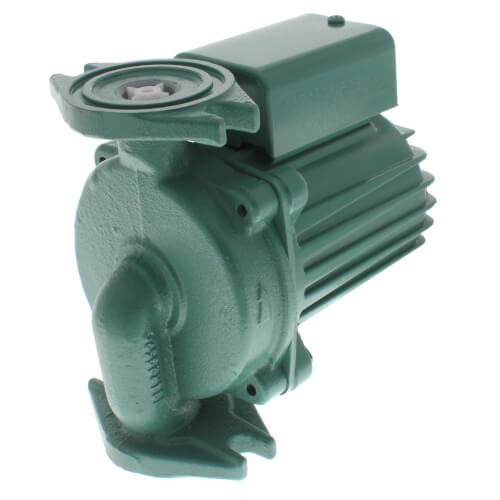

The Taco 009-IFC with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with "00" circulators on a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include Hydronic heating, Radiant In-Floor/Panel heating and closed-loop solar heating systems. The bronze 009-IFC can be used in higher-head/lower-flow heat recovery, ,open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Available with optional Priority Zoning or Variable Speed controls
Features
* Integral Flow Check (IFC) Patent # 5,664,939
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Improved performance vs. In-line flow checks
* Optional Variable Speed or Priority Zoning Control
* Unique replaceable cartridge-Field serviceable
* Quiet, Efficient Operation
* Direct Drive-Low Power Consumption
* Self-Lubricating, No Mechanical Seal
* Standard high capacity output-Compact design
Wide range of applications
Cast Iron or Bronze Construction, flanged connections
Typical Applications
* Hydronic heating * Radiant In-Floor/Panel heating * Closed-loop solar heating systems.
Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-021RP
Valve Addembly Trans/Relay: 009-033RP
Performance Data
Flow Range: 0-10 GPM
Head Range: 0-34 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
The Taco 009-IFC with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with "00" circulators on a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include Hydronic heating, Radiant In-Floor/Panel heating and closed-loop solar heating systems. The bronze 009-IFC can be used in higher-head/lower-flow heat recovery, ,open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Available with optional Priority Zoning or Variable Speed controls
Features
* Integral Flow Check (IFC) Patent # 5,664,939
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Improved performance vs. In-line flow checks
* Optional Variable Speed or Priority Zoning Control
* Unique replaceable cartridge-Field serviceable
* Quiet, Efficient Operation
* Direct Drive-Low Power Consumption
* Self-Lubricating, No Mechanical Seal
* Standard high capacity output-Compact design
Wide range of applications
Cast Iron or Bronze Construction, flanged connections
Typical Applications
* Hydronic heating * Radiant In-Floor/Panel heating * Closed-loop solar heating systems.
Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-021RP
Valve Addembly Trans/Relay: 009-033RP
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.4 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/8 |
| Connection Size: | 1-1/2" 3/4" 1" 1-1/4" |
| Max Flow (GPM): | 10 |
| Flow Range (GPM): | 0-10 |
| Head Range (ft.): | 0-35 |
| Max Head (Ft): | 35 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
5 Replacement Parts
Taco Capacitor for 009 Circulator Pumps
SKU: 009-018RP
TacoSleeve Gasket, 920-007RP
SKU: 920-007RP
TacoNeed help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-4 of 4 reviews
Product works as it should
Good fast delivery.
Donnie
Kenton, MI
2 years ago
Verified Buyer
Was this review helpful to you?
This is a replacement part for the radiant floor heating
There us no other option for the radiant floor heating system in the house to work but this item.
Ann
Alaska
4 years ago
Verified Buyer
Was this review helpful to you?
Taco makes good pumps
After doing the proper friction loss calculations on a radiant floor Uponor Quick Track Wirsbo 5/16" hePEX installation that was outputting heat poorly, I determined the existing Taco 0015 was extremely under powered. Based on the pump curve it seemed that the Taco 009 was perfect for the job. It ended up increase the flow rate by 50% and made a big difference in overall system operation and room comfort. Just a quick tip for anyone else encountering the same situation, the flange of the 009 is 90 degrees different from the 0015. In my situation I didn't have the space to mount the pump that way, so I was able to rotate the top pipe and flange enough, then for the bottom I utilized a Double Flange Check Valve (sku 13703HV) to get the orientation needed and I pulled the flow check valve out of the pump. (see photo)
Matt
New Bedford, MA
8 years ago
Verified Buyer
Was this review helpful to you?
Excellent!!!!!
Very good price [...]..Works works great on my outside wood boiler....Fast and easy install...
Josh
Ebensburg, PA
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can you add an internal flow check to a taco 009-F5
Asked by Wally 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno you cant
Was this review helpful to you?
Q: I have a TACO mod. 009-f4 that is not referenced in your listing. Would the 009-f5 work as a replacement?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe 009-F5 can replace the 009-F4. This model (009-F5-IFC) also includes an internal flow check.
