$1,459.74 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/3 HP
1 Year Warranty
Flanged x Flanged Connection
34 MAX GPM
125 MAX PSI
Description
–

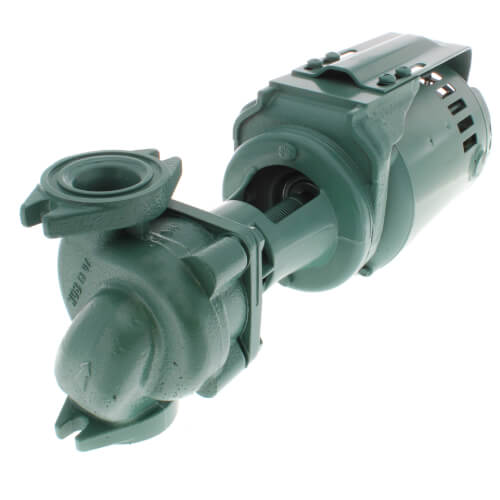

Taco 100 Series in-line circulators are designed to efficiently circulate heated or chilled water in residential, commercial hydronic or solar systems. They are ideal for primary-secondary systems, as well as parallel pumping designs. These circulators may also be used for zoning large installations and are available in bronze construction for fresh water and domestic hot water applications.
Features:
Features:
- Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Proven Pump Construction - One piece non-ferrous impeller, stainless steel shaft, rugged bronze sleeve bearing, two piece carbon/ceramic seal assembly, durable one piece spring coupling
- Factory Tested - Every circulator is operated before shipment
- Easy, Low-Cost Service - No special tools required, nationwide parts availability
Specs
–
| Application: | Heating |
|---|---|
| Material: | Cast Iron |
| Horse Power: | 1/3 |
| RPM: | 3450 |
| Voltage: | 115V |
| Phase: | 1 |
| Hertz: | 60 |
| Max Temp (F): | 240°F |
| Max Pressure (PSI): | 125 |
| Max Head (Ft): | 22 |
| Head Range (ft.): | 0-22 |
| Max Flow (GPM): | 34 |
| Flow Range (GPM): | 0-34 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 1-1/4" 1-1/2" 1" 3/4" |
| Type: | Pump |
| Warranty: | 1 Year |
