36 Port Polymer 1/2" PEX Press MANABLOC Package (Press Supply)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description

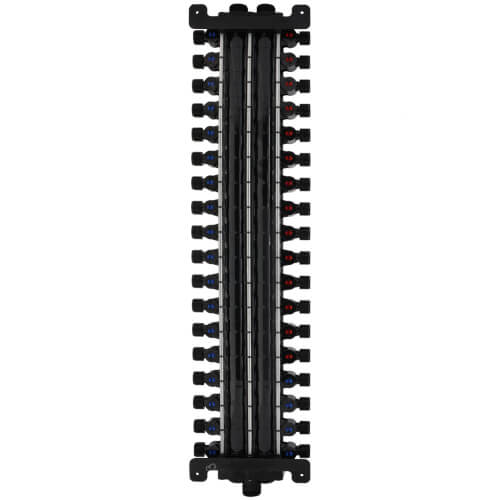

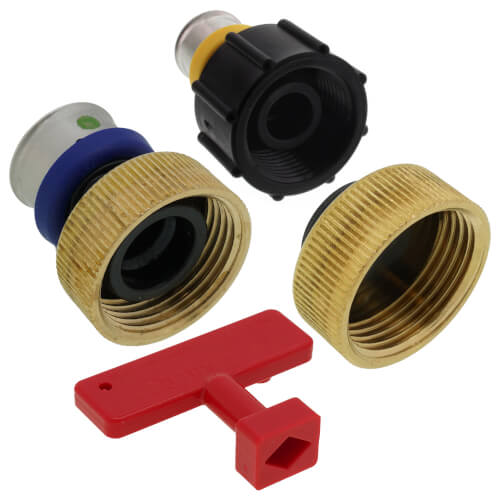

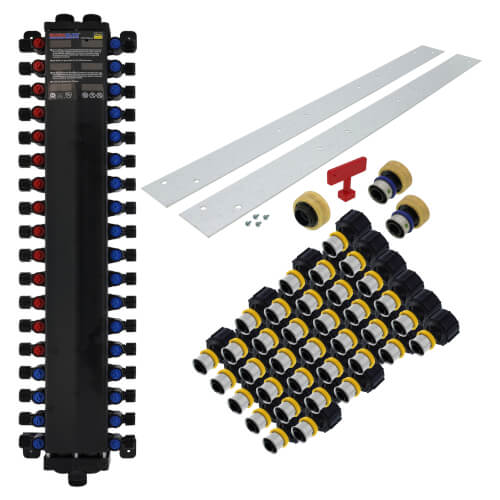

- (1) 49630: 36 Port MANABLOC (14 Hot, 22 Cold)

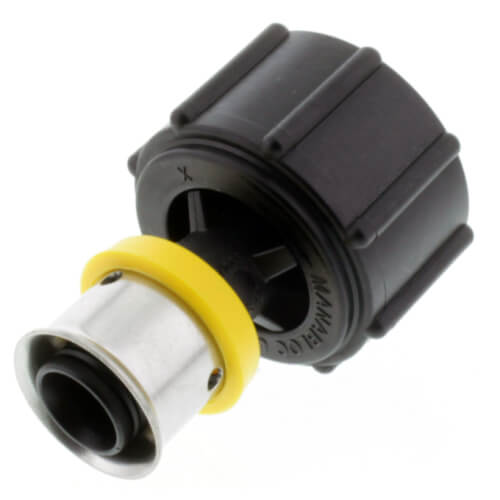

- (36) 49234: 1/2" PolyAlloy Press x MANABLOC Port Adapter (Lead Free)

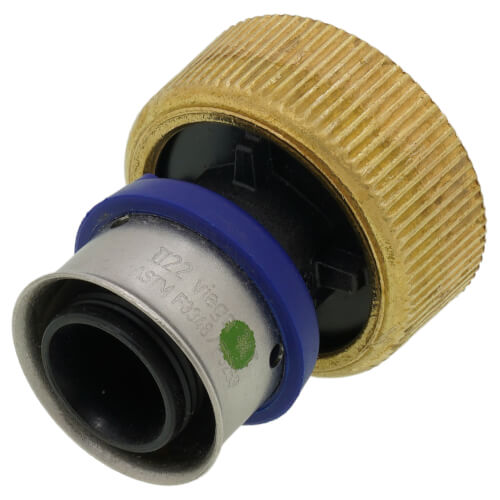

- (2) 49414: 3/4" PEX Press x MANABLOC Supply Adapter

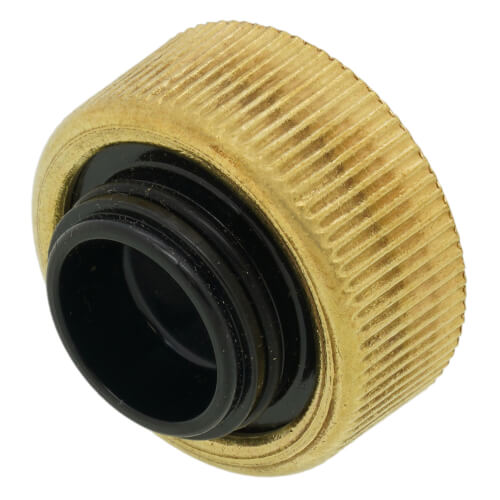

- (1) 53601: MANABLOC Supply End Cap
- (1) 45716: Set of 2 Mounting Straps

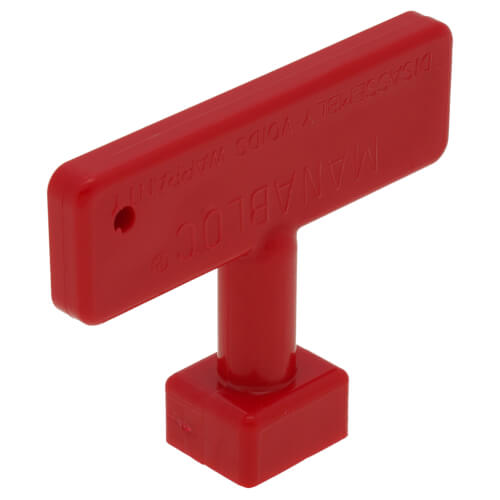

- (1) Additional 50601: Valve T-Handle (1 comes with MANABLOC)
**Important**
- The MANABLOC plumbing system carries a maximum pressure/temperature rating of 100 psi @ 180°F. Excessive pressure to the MANABLOC will cause leaks.
- Do not allow chemicals such as PVC glues or solder flux to come into contact with the MANABLOC. They will compromise the integrity of the MANABLOC and cause leaks.
- Please consult the MANABLOC install instructions for a more comprehensive list of chemical materials that will cause harm to the MANABLOC plumbing system.
Specs
| Application: | Plumbing |
|---|---|
| Type: | MANABLOC Package |
| Number of Outlets: | 36 |
| Number of Outlets (Cold): | 22 |
| Number of Outlets (Hot): | 14 |
| Port Size: | 1/2" |
| Outlet Type: | PEX |
| Loop Connection: | PEX Press |
| Supply Connection: | PEX Press |
| Inlet Type: | MNPT |
| Inlet Size: | 3/4" |
| Tubing Compatibility: | PEX |
| Manifold Compatibility: | Manabloc |
| Fitting System Compatibility: | PEX Press |
Questions?
You May Also Need
2 Replacement Parts
Need help finding a replacement part?
Product Q&A
4 QuestionsQ: Do you use 1/2 " pex from manobloc to toilet lavatory and shower? When and where do you use 3/8" tube?
Asked by weekend warrior 14 years ago
Add your answer
Verified Reply- PexSupply StaffAlthough it's easier to find 1/2" fittings for fixture connections, 3/8" PEX is generally adequate for all standard residential fixtures except hose bibbs, tubs, showers, and washing machines.
Q: Can I use the manabloc with wirsbo type fittings?
Asked by Trav 14 years ago
Add your answer
Verified Reply- PexSupply StaffIt is not possible to connect Uponor ProPEX fittings to the distribution ports on a MANABLOC, although you can use AquaPEX tubing, along with ProPEX fittings at your fixtures. Uponor's AQUACENTER manifolds are an alternative to the MANABLOC. These work with ProPEX fitting connections, but require more components to be put together.
Q: What is diff between NPT supply and Press supply?
Asked by Frank 14 years ago
Add your answer
Verified Reply- PexSupply StaffNPT supply adapters allow you to connect anything with 3/4" or 1" female threads to the supply ports of the MANABLOC. PEX press supply adapters come in the same sizes and connect to PEX tubing using the PEX press fitting method (tool required).
Q: Can I get both 1/2and 3/8 out flow connectors for the 30 connection maniblock?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can use 3/8" port adapters (part 96101) or 1/2" port adapters (part 96120) on any PEX Press MANABLOC. There is also a "combination" 30-port PEX Press MANABLOC (part 38030) available through special order. It includes 12 hot ports (ten 3/8" & two 1/2") and 18 cold ports (twelve 3/8" & six 1/2").
