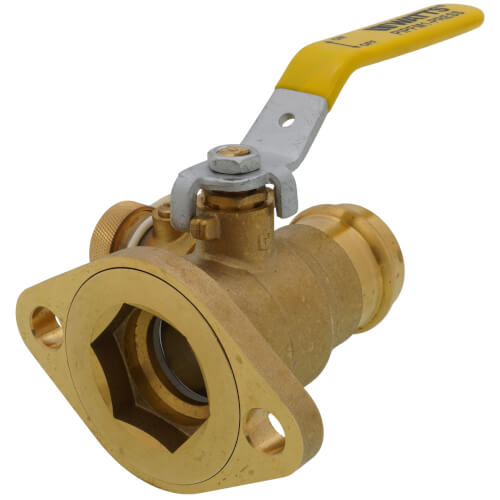

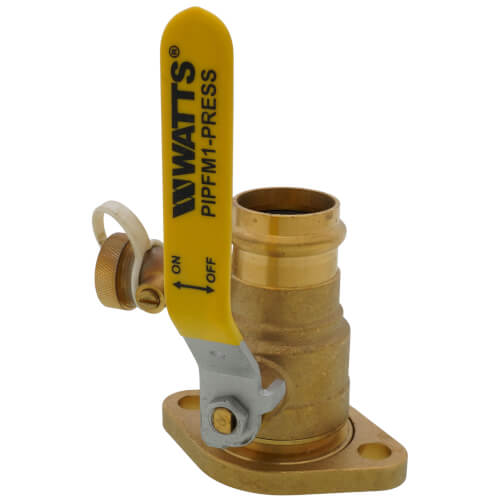

1-1/4" Press Purge Isolation Pump Flange Valve w/ Rotating Flange
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/4"
Press Connection
Brass
Full Port
1-1/4" Connection
400°F Max Temp
Description
–
The 1-1/4" PIPFM1-Press is a full port purge isolation pump valve which features a swivel flange and press end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.
Features:
Features:
- Swivel Flange
- Press Connection
- Lever Handle
- Leaded Valve
- Actuation: No
- Assembled Dry: Yes
- Balance Stop Plate: No
- Ball Material: Brass
- Body Finish: Brass
- Body Material: Brass
- Control Type: Lever Handle
- EAN: 098268186215
- Inlet Connection Size: 1-1/4"
- Inlet Connection Size-Metric: 32 mm
- Inlet Connection Type: Flanged Joint
- Lead Free: Not In Scope
- Maximum Temperature-Fahrenheit: 400
- Minimum Temperature-Fahrenheit: -40
- Outlet Connection Size: 1-1/4"
- Outlet Connection Type: Press
- Port Type: Full
- Seat Material: PTFE
- Series: PIPFM1
- Stem Packing Material: PTFE
- Stem Shaft Material: Brass
- Stem Type: Bottom Loaded Blowout Proof
- Thrust Washer Material: PTFE
- Valve Style: 2-piece
- WOG Rating: 600 PSI
Specs
–
| Size: | 1-1/4" |
|---|---|
| Connection Size: | 1-1/4" |
| Max Temp (F): | 400°F |
| Min Temp (F): | -40°F |
| Connection Type: | Press |
| Material: | Brass |
| Type: | Isolation Flange |
| Port Type: | Full Port |
