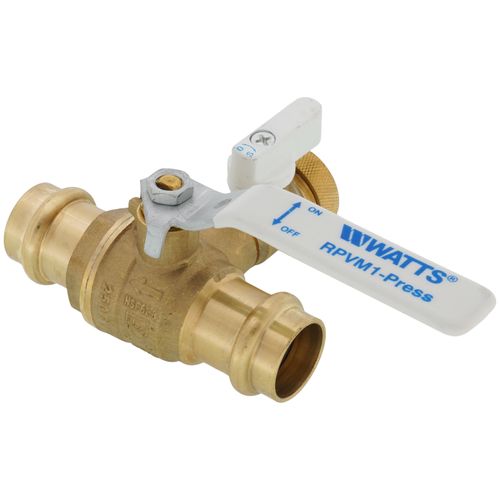

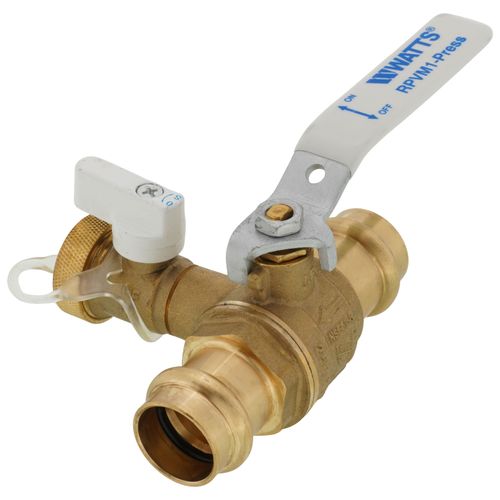

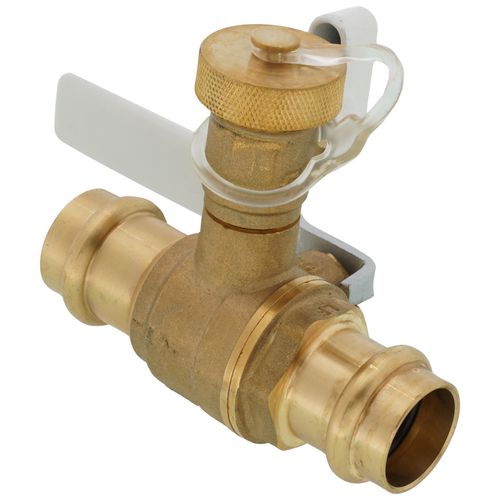

3/4" Press Residential Purge Valve (Lead Free)

This 3/4" Press residential purge and balancing valve is used in heating applications to facilitate removal of air from heating zones on initial fill and to control water flow through a circulation loop. It also serves as a shutoff valve and a drain valve for each zone or loop. This valve consists of a one-piece brass body with brass drain, plated brass ball, virgin PTFE seats, hose thread connection for purging, iron handle, and press end connections. It provides high volume purging, accurate balancing, a positive drip-tight shutoff and is ideal for use in hydronic heating loops.

Features:

• 1/2 IN purge port
• Press connections
• Tethered purge port cap
• Full port ball valve

Specifications:

• Body Material: Brass
• Buy American Act Compliant: No
• Inlet Connection Size: 3/4"
• Inlet Connection Size-Metric: Does Not Apply To Product
• Inlet Connection Type: Press
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 250
• Outlet Connection Size: 3/4"
• Outlet Connection Type: Press
• Vacuum Breaker: No
