Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

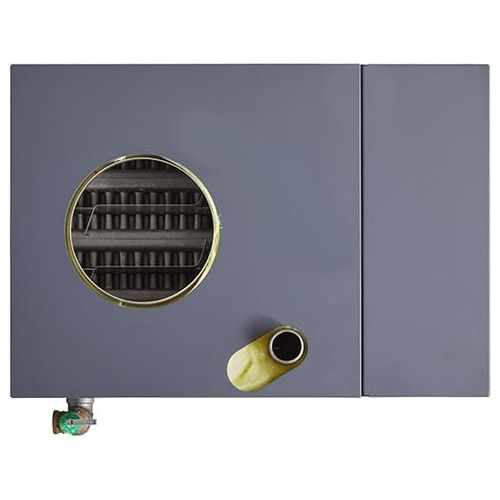

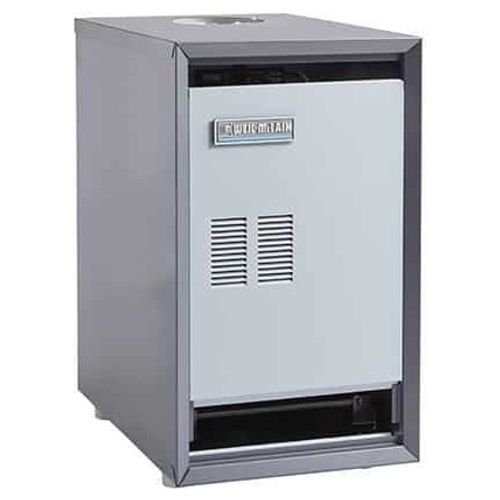

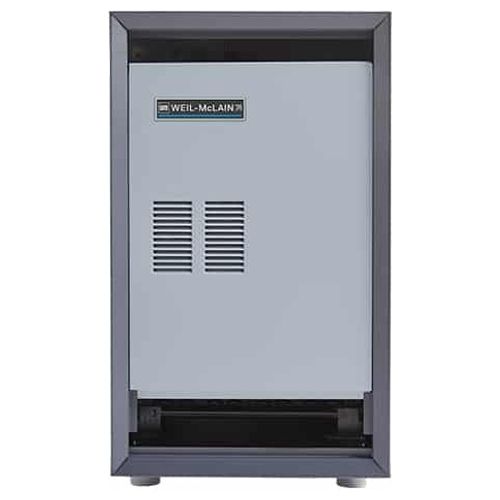

This is a CGA-8 - 188,000 BTU Output Boiler, Spark Ignition w/ Taco 007 Circulator, Works at 7,000-10,000 ft Altitude - Series 4 (Nat Gas) manufactured by Weil McLain.
| DOE Rating: | 198000 |
|---|---|
| System Type: | Hydronic (Water) |
| Warranty: | 20 Year (Heat Exchanger)/ 2 Year (Parts) |
| Boiler Type: | Standard |
| BTU Output: | 172000 |
| Max Altitude (Feet): | 10000 |
| Features: | 007 Circulator |
| Vent Type: | Atmospheric Type B Vent (Chimney) |
| Depth (Inches): | 7" |
| Fuel Type: | Natural Gas |
| Product Type: | Boiler |
| Ignition Type: | Spark Ignition |
| BTU Input: | 233000 |
| Efficiency: | 84% |
| Water Connection: | 1-1/2" |
| Vent Size: | 7" |
| Height (Inches): | 64-7/8" |
| Gas Connection: | 3/4" |
| IBR Rating: | 172000 |
| Width (Inches): | 25" |
