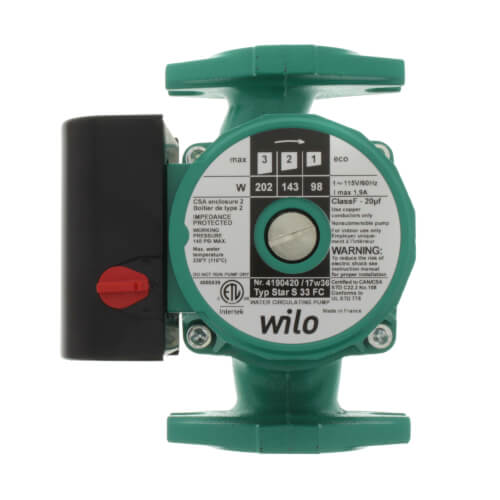

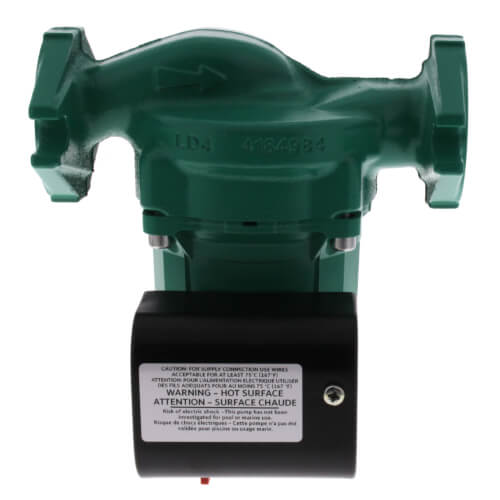

Star S 33 FC, 3-Speed Cast Iron Star Series Circulator, 1/6 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$450.00 each
In Stock
Get 25 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
Flanged x Flanged Connection
26 MAX GPM
140 MAX PSI
Cast Iron
Description
–
Wet rotor circulation pump, with flanged connection. (Flange perpendicular to shaft). Cast iron body for hot-water heating systems of all kinds, industrial circulation systems, cold-water systems and air-conditioning systems.
Features:
Materials:
Features:
- Suitable for any installation position with horizontal shaft; terminal box in 3-6-9-12 o'clock position
- Impedance protected motor, motor protection not required
- Cable entry both sides of terminal box
- Quick connection spring clips for simple electrical connection
- Steel Terminal Box
- Fits all Competitor's Models
- Powerful Starting Torque
- Ultra Quiet
- Reliable Wet Rotor Technology
- Optional Check Flange Set
- Automatically Vented
Materials:
- Pump housing: Grey cast iron (EN-GJL200)
- Impeller: Engineered Composite (PP - 40% GF)
- Shaft: Stainless steel (Cr)
- Bearing: Metal-impregnated carbon
Specs
–
| Type: | 3-Speed Pump |
|---|---|
| Application: | Heating |
| Material: | Cast Iron |
| Horse Power: | 1/6 |
| Voltage: | 115V |
| Phase: | 1 |
| Amperage: | 1.5 |
| Hertz: | 60 |
| Temperature Range (F): | 14°F - 230°F |
| Max Pressure (PSI): | 140 |
| Max Flow (GPM): | 26 |
| Max Head (Ft): | 30 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 1-1/2" 3/4" 1-1/4" |
| RPM: | 2700 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Voltage
Temperature Range (F)
Max Pressure (PSI)
Max Flow (GPM)
CURRENT ITEM
3-Speed Pump
115V
14°F - 230°F
140
26
You May Also Need
Product Reviews
3.67 out of 3 reviews
67% would recommend this product
5 star
67%
4 star
0%
3 star
0%
2 star
0%
1 star
33%
Showing 1-3 of 3 reviews
Pumps have been failing too early in life.
The pump lasted 4 Years before the impeller broke. I should have gotten more life out of it. I seem to get early failure from Pumps purchased from supplyhouse.com
Kevin
Aurora Colorado
7 months ago
Was this review helpful to you?
i would buy again
Just what I needed — arrived so fast!
Tuan
NYC
1 years ago
Verified Buyer
Was this review helpful to you?
Yes
Use for hot water recirculating system
Country Boy
Sarasota FL
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: 1) Does this pump replace the Wilo #4188866/18w41, Typ Star S 33 FC? 2) looking for replacement pump that fits in existing #4188866 housing. Thx, john
Asked by John 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi John. Yes, the 4190420 replaces the 4188866 by Wilo and is the updated model Star S 33 FC.
