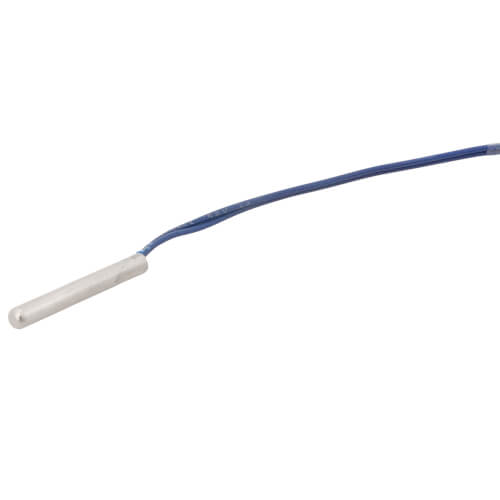

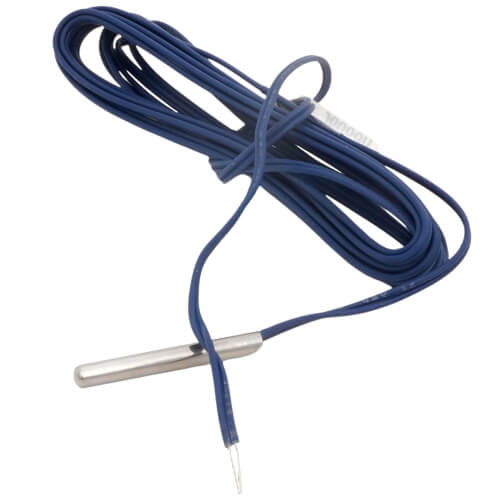

Floor Sensor, replacement part
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$69.18 each
In Stock
Get 8 Tue, Jun 16
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10' Length
A3041501, A3041511
Description
–
This floor sensor is 10' long and is designed for use with setpoint controllers in radiant heat systems. This sensor may be used for joist, retro-fit, and slab radiant heat installations.
Specs
–
| Length (Feet): | 10' |
|---|---|
| Application: | Replacement Part |
| Used With: | A3041501 A3041511 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
must have for floor heat
Don't try to use a regular thermostate without a floor sensor for radaint heat.
Frank
Pittsboro, NC
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Will the sensor fit into a 3/16" grout space?
Asked by Richard 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe sensor has a 3/16" diameter. It can be placed in grout, but it sounds like it would be a tight squeeze.
Was this review helpful to you?
Q: What is the diameter of the end of the sensor. We are placing a pex pipe in the concrete floor to feed the sensor into. If it ever fails, we can pull it out and feed a new one in. We want to know what size of pex it would feed into!
Asked by Dave 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis sensor will fit into 5/16" PEX.
Was this review helpful to you?
Q: Can you supply a floor sensor with a longer wire than 10 ft
Asked by Rranger 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe slab sensor is supplied with 10’ of cable. If a longer length is required, 24 AWG or larger wire can be spliced onto the two wires from the sensor. The splices should be properly soldered and protected in an accessible junction box.
Was this review helpful to you?
Q: How can you retrofit for radiant floor heat when tubing has been installed and finished tile completed? Please advise.
Asked by Duane 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can place the sensor behind a piece of molding down by the floor, or if you have access to under the floor in a joist bay, you may place the sensor on the sub-floor by drilling a pilot hole in which to place the sensor.
Was this review helpful to you?
