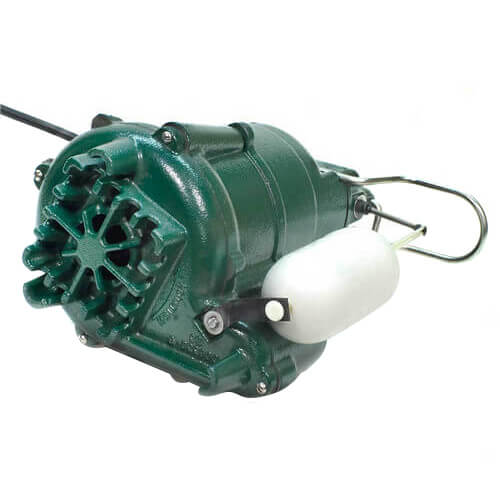

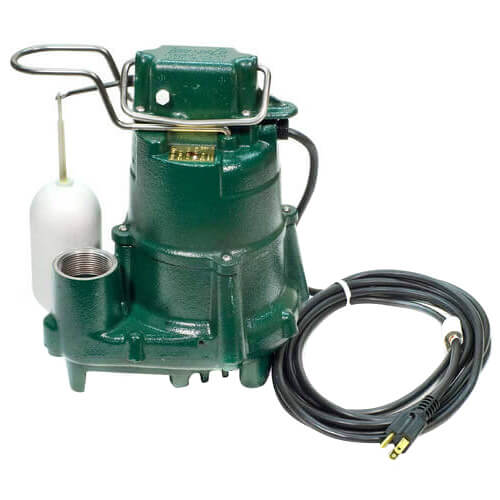

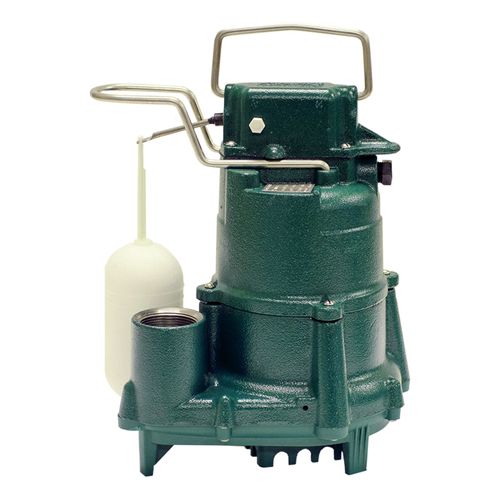

Model M98 Flow-Mate Automatic Cast Iron Effluent Sump Pump w/ 25' Cord - 115 V, 1/2 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
72 GPM
1/2 HP
25'
Cast Iron
9.4 Amps
Description
–
Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.
Features:
Features:
- Corrosion resistant powder coated epoxy finish
- Durable cast iron construction
- Cast iron switch case, motor, pump housing and base
- No sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000# tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float operated submersible (NEMA 6) 2 pole mechanical switch
- Permanent split capacitor motor, oil filled and hermetically sealed, automatic reset thermal overload protection
- Bearings - upper & lower oil fed cast iron
- Carbon and ceramic shaft seal
- Entire unit pressure tested after assembly
- Watertight neoprene square ring between motor and pump housing
- Maximum temperature for effluent or dewatering 130°F (54°C)
- Impeller Type: Non-clogging, engineered plastic vortex impeller
- Passes 1/2" spherical solids
- No screens to clog
- 1-1/2" NPT discharge
- On point: 9-1/2", Off point: 3"
- Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Specs
–
| Application: | Plumbing |
|---|---|
| Type: | Automatic |
| Material: | Cast Iron |
| Horse Power: | 1/2 |
| Voltage: | 115V |
| Flow at 5 FT Head: | 72 GPM |
| Amperage: | 9.4 |
| Shutoff Head (ft.): | 23' |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Cord Length: | 25' |
| Cord Type: | UL Listed Power Cord |
| Height (Inches): | 12" |
| Width (Inches): | 10-1/8" |
