Description

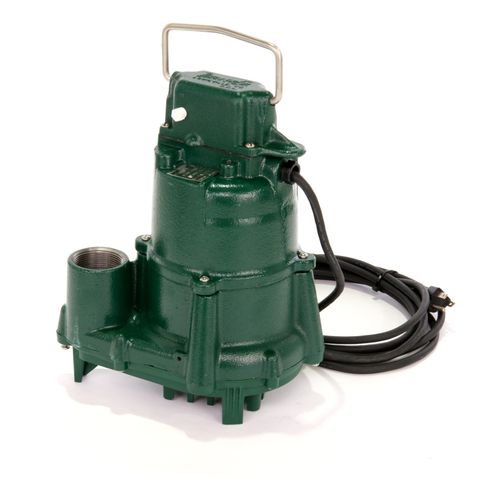

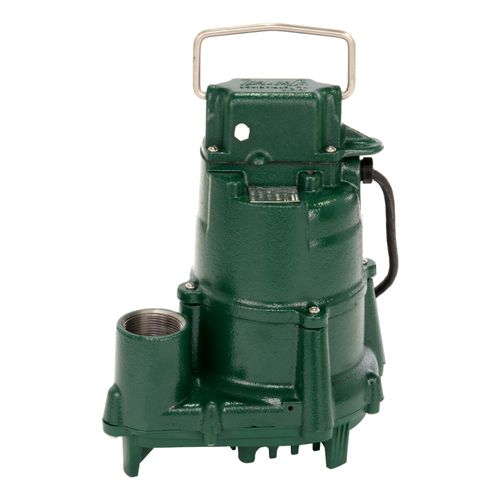

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.

Features:
  • Corrosion-resistant, powder coated epoxy finish
  • Durable, cast iron construction
  • Cast iron switch case, motor and pump housing
  • Engineered thermoplastic base
  • No sheet metal parts to rust or corrode
  • All castings are cast iron class 25-30 25000# tensile strength
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Float-operated 2-pole mechanical switch

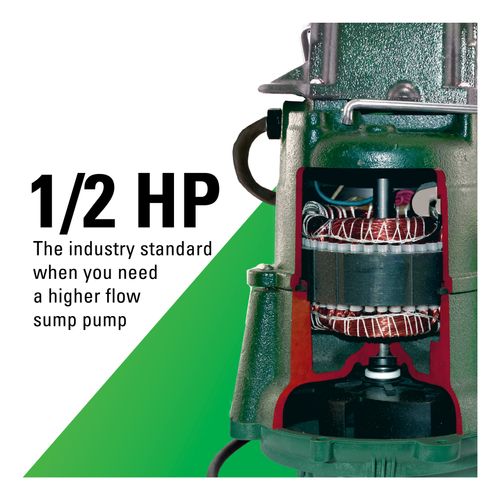

  • Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
  • Bearings – upper and lower oil-fed cast iron
  • Carbon and ceramic shaft seal
  • Entire unit pressure-tested after assembly
  • Watertight, neoprene square ring between motor and pump housing
  • Maximum temperature for effluent or dewatering: 130 °F (54 °C)
  • Passes 1/2” (13 mm) spherical solids
  • No screens to clog
  • 1-1/2” NPT discharge (1-1/2” x 2” PVC adapter included with BN and BE Models)
  • On point: 9-1/2” (24 cm)
  • Off point: 3” (8 cm)
  • Major width: 10-1/8" (25.7 cm)
  • Major height: 12" (30 cm)
  • Simplex and duplex systems available
  • Packaged systems available
  • Automatic and non-automatic available
  • Available with piggyback variable level float switch
Hide Description
Specs
Type:

Manual

Application:

Plumbing

Material:

Cast Iron

Horse Power:

1/2

Flow at 5 FT Head:

72 GPM

Voltage:

115v

Shutoff Head (ft.):

23'

Amperage:

9.4

Hertz:

60

Phase:

1

RPM:

1725

Cord Length:

15'

Cord Type:

UL Listed Power Cord

Height (Inches):

12"

Width (Inches):

10-1/8"

Warranty:

3 Years

×
