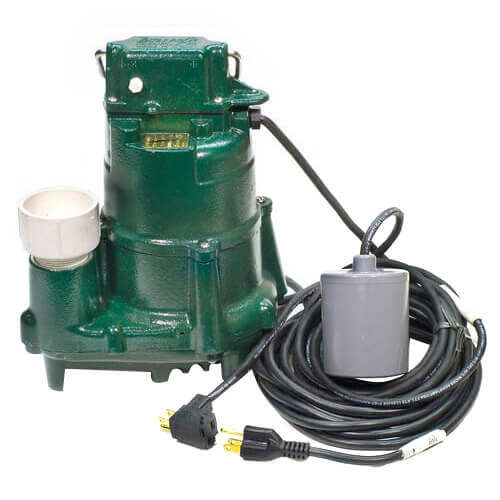

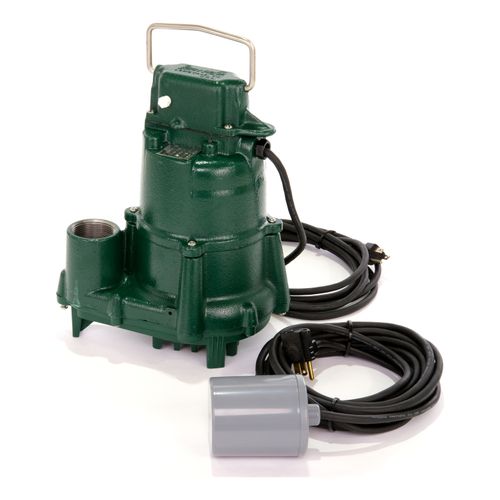

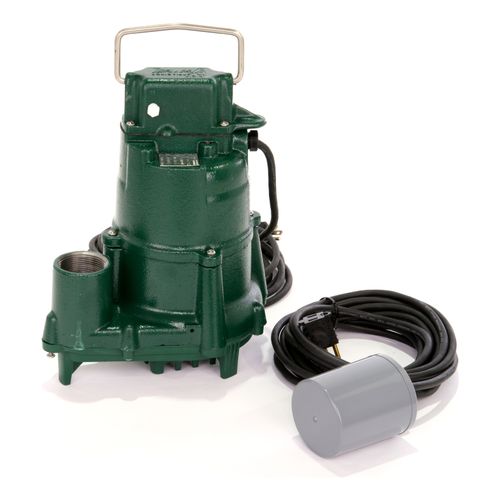

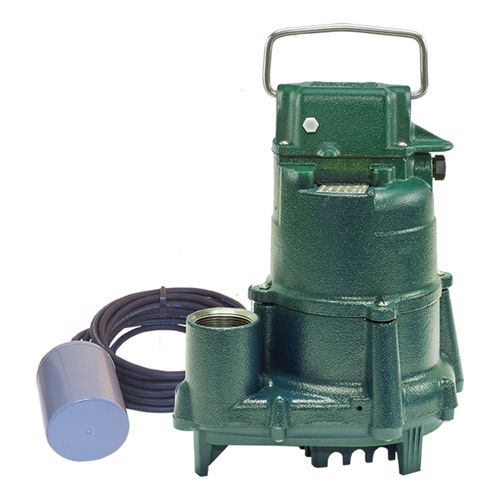

Model BN98 Flow-Mate Cast Iron Effluent Sump Pump w/ Variable Level Float Switch- 115 V
Magnifying glass
Hover image to zoom
Home
Plumbing Supplies
Pumps
Effluent Pumps & Accessories
Effluent Pumps
Zoeller Effluent Pumps

Model BN98 Flow-Mate Cast Iron Effluent Sump Pump w/ Variable Level Float Switch- 115 V

Brand:
Zoeller
SKU:
98-0005
Rating:
(20)
Q&A:
(0)
Model BN98 Flow-Mate Cast Iron Effluent Sump Pump w/ Variable Level Float Switch- 115 V
Magnifying glass
Hover image to zoom
$364.50 each
In Stock
In Stock
Get 2 Mon, Jan 27
More Available
Fast Track Logo
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: Flow at 5 FT Head
72 GPM
Product Highlight: Horse Power
1/2 HP
Product Highlight: Cord Length
15'
Product Highlight: Material
Cast Iron
Product Highlight: Amperage
9.4 Amps

Description

–

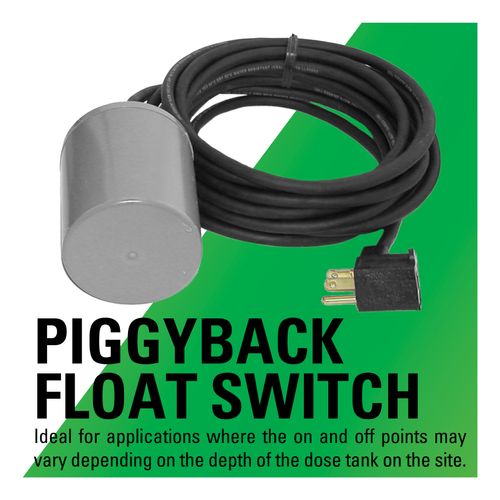

This model includes 15' piggyback variable level float switch and 1-1/2" x 2" adapter

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.

Features:
  • Corrosion resistant powder coated epoxy finish
  • Durable cast iron construction
  • Cast iron switch case, motor, pump housing and base
  • No sheet metal parts to rust or corrode
  • All castings are cast iron class 25-30 25000# tensile strength
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Float operated submersible (NEMA 6) 2 pole mechanical switch

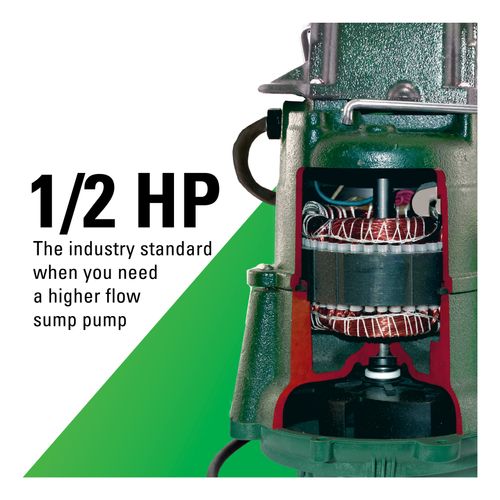

  • Permanent split capacitor motor, oil filled and hermetically sealed, automatic reset thermal overload protection
  • Bearings - upper & lower oil fed cast iron
  • Carbon and ceramic shaft seal
  • Entire unit pressure tested after assembly
  • Watertight neoprene square ring between motor and pump housing
  • Maximum temperature for effluent or dewatering 130°F (54°C)
  • Impeller Type: Non-clogging, engineered plastic vortex impeller
  • Passes 1/2" spherical solids
  • No screens to clog
  • 1-1/2" NPT discharge
  • On point: 9-1/2", Off point: 3"
  • Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Specs

–
Cord Length:

15'

Shutoff Head (ft.):

23'

Application:

Plumbing

Type:

Automatic

Features:

Includes Piggyback Variable Level Float Switch

Material:

Cast Iron

Horse Power:

1/2

Flow at 5 FT Head:

72 GPM

Voltage:

115V

Amperage:

9.4

Hertz:

60

Phase:

1

RPM:

1725

Cord Type:

UL Listed Power Cord

Height (Inches):

12"

Width (Inches):

10-1/8"
