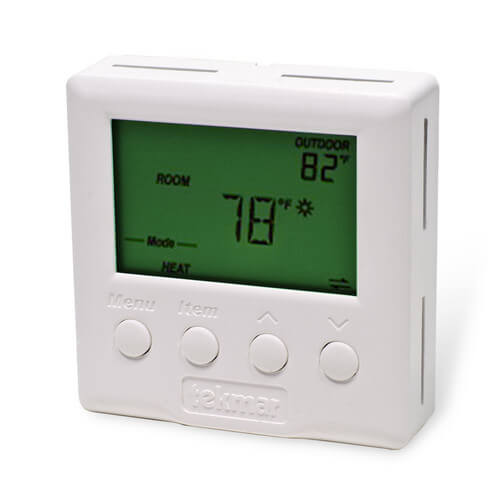

Programmable One Stage Heat Thermostat Zoom

Programmable One Stage Heat Thermostat

SKU:510

Brand: Tekmar

Tekmar
510 has been discontinued.
Direct Replacement:
SKU: 521
Brand: Tekmar
0

Resources

Specs

Application: Heat Pump
Heat Only
Stages:
?
1 Heat
Programmability: Programmable
7 Day
User Interface: Push Button
Mount: Horizontal
Options: Works with Sensor
Large Display
Power Method: Hardwired
Temperature Range (F): 35°-100°F
Voltage:
?
Low voltage
Amperage:
?
2
Wattage:
?
48
Wiring: 7
6
Com
S2
R
C
S1
Color: White
Height: 2-7/8"
Width: 2-7/8"
Depth (Inches): 13/16"
Weight (lbs): .46 lbs
Ambient Conditions: Indoor Only: 32°-122°F <90% RH Non-Condensing
Control: Microprocessor PID control
Enclosure Type: J
Floor Sensor Compatible: Yes
Sensors: NTC Thermistor
10 k ohm @ 77°F
Relays: 24 V (ac) 2 A-Latching
Package Type: Accessories
Wireless: No
Humidity Control: No

Description for Tekmar 510

Control Description

    The 510 is a microprocessor-based thermostat intended for one stage heating applications. The 510 allows for up to two auxiliary sensors. The auxiliary sensors can be used to measure air temperature to get an average temperature for large areas. The auxiliary sensors can be used to measure slab temperature in order to limit the minimum and / or maximum allowed slab temperature. Or the auxiliary sensors can be used to display the outdoor temperature and / or a remote temperature.

Features:
  • 2 auxiliary sensor inputs
  • Auto Heating Cycle
  • CSA C US Approved for use in USA and Canada
  • Freeze Protection
  • Programmable Setback Schedule
  • Pulse Width Modulation
  • Slab minimum and maximum settings (with slab sensor)

Programmable One Stage Heat Thermostat

REVIEW SNAPSHOT®

by PowerReviews
TekmarProgrammable One Stage Heat Thermostat

4.7

(based on 3 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 3 customers

Sort by

Displaying reviews 1-3

Back to top


5.0

TEKMAR 510 THERMOSTAT

By Boyd C.

from California

Verified Buyer

Comments about Programmable One Stage Heat Thermostat:

Clear, concise, and versatility in programming. A necessary component to an efficient radiant heat system.


4.0

DUAL MONITOR THERMOSTAT

By John

from Iowa

Verified Buyer

Comments about Programmable One Stage Heat Thermostat:

I use this with a concrete slab - 600' of 1/2" pex tubing to heat an approx 20x40 garage turned shop area. PROS: Monitors both the air and slab temps and uses both to call for or shut off heat. Air temp low - checks slab. If slab is over max temp it won't call for heat. Slab reaches its minimum temp - calls for heat regardless of air temp. Also can be programmed to limit the number of on/off cycles per hour. I have set my max slab temp to 78 and my air temp to 63. Slab runs about 71 and to keep air at 63, and it doesn't feel cold. The programming functions are very limited on this unit. You set TWO temps: Occupied and Non-Occupied. Then you choose either 2 or 4 cycles per day, and set the times for those cycles to start. i.e. 2 cycles OCCUPY at 7am NON at 6pm for an office setup. 4 Cycles for a home where you're away at work OCC 6am, NON 8am, OCC 5pm NON 11pm. ONLY the times are flexible, NOT the number of cycles. And you can only specify an OCC and NON temp - no variation of that temp for the various on/off cycles. Turns out I don't bother with the programming - constantly set at one temp, which works well with concrete anyway. A much more flexible thermostat than the 501s that costs the same and has no programming.


5.0

Easy Install & Setup

By Darby

from Sioux Falls, SD

Verified Buyer

Comments about Programmable One Stage Heat Thermostat:

Easy Install and setup. This replaces a bathroom floor heat thermostat that was non programmable.
