Description
Note: ProMax name is now ProLine.

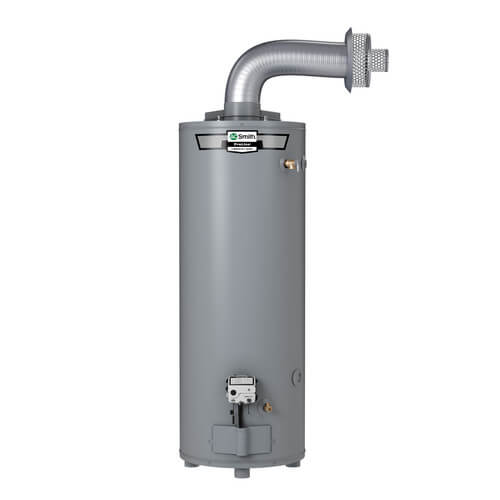

The ProLine® Ultra-Low NOx Direct Vent residential gas water heaters offer horizontal or vertical venting options in an FVIR solution to reduce the risk of accidental fires involving flammable vapors.

Featuring a 40-gallon tank and a 36,000 BTU gas burner, the GDNL-40L-100 Direct Vent Ultra-Low NOx delivers a first hour rating of 59 gallons and a recovery rate of 39 gallons per hour. With an 0.62 Energy Factor, this water heater is not ENERGY STAR® qualified. It carries a 6-year limited tank warranty, and meets Ultra-Low NOx emission requirements.

Features:
  • Flammable vapor resistant/direct Vent sealed combustion system - Thru-the-Wall/Thru-the-Roof venting of combustion products
  • Air for combustion is drawn from outside the building
  • Fused ceramic tank shield - A tough, thick, durable coat of blue ceramic is fused to the tank's interior surfaces at 1600°F, forming a corrosion-resistant lining for years of dependable protection and use
  • Non-CFC foam insulation - The tank is surrounded by a thick coat of non-CFC polyurethane foam to trap heat inside the tank, saving energy
  • Durable, ultra low NOx burner construction
  • Combination thermostat/ECO - With factory-preset pressure regulator and built-in millivolt-powered energy cut-off for overheat protection
Read more
Specs
Application:
Plumbing
Fuel Type:
Natural Gas
Capacity (Gallons):
40
BTU Input:
36000
Energy Factor:
0.59
Height (Inches):
65.25
Diameter (Inches):
22"
Recovery 90°F Rise:
39 GPH
Energy Star Rated:
Yes
Weight (lbs):
179
ASME:
Yes
Venting:
Direct
Warranty:
6 Year Tank / 6 Year Parts Limited
×
