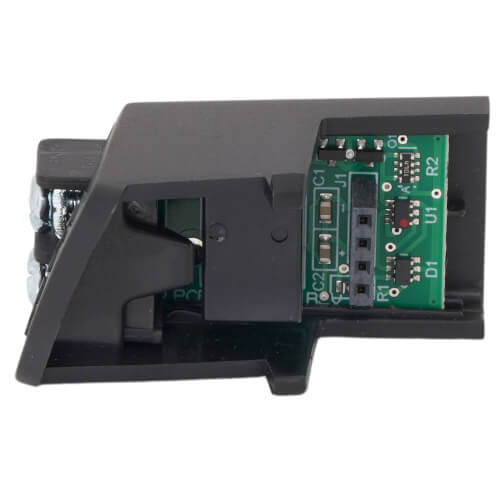

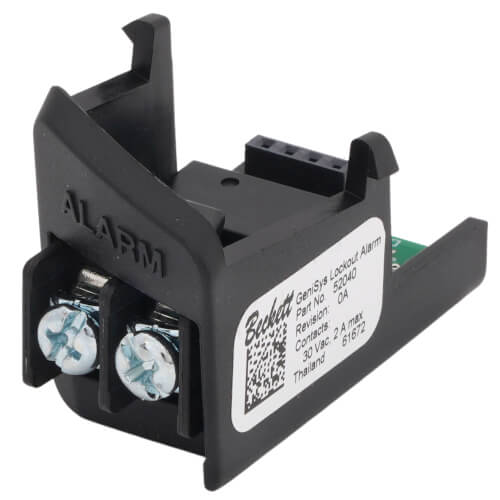

Beckett GeniSys Lockout Alarm Module

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

Overview

The GeniSys® 7505 Series Lockout Alarm functions as the interface between the primary control and an existing alarm panel or any alarm mechanism requiring contact closure in the event of a soft or hard lockout of the GeniSys® 7505 Series Oil Burner Control.

Operation: When power is applied to the primary control, the alarm module continuously monitors the GeniSys control for both a hard and soft lockout signal. If the alarm module detects either a hard or soft lockout, normally open relay contacts on the module close, creating a short circuit between the output terminals. When the alarm module no longer senses a lockout signal or power is removed from the control, the module relay contacts will open.

Specifications

• Maximum Alarm Module Contact Switching Current: 2 Amps (ac or dc)
• Minimum Alarm Module Contact Switching Current: 5 mA (ac or dc)
• Maximum Alarm Module Switching Voltage: 30V (ac or dc)
• Minimum Alarm Module Switching Voltage: 5V (ac or dc)
• Storage & Operating Ambient Temp: -40°F to +1500°F (-40°C to +65°C)
• Humidity (noncondensing & non-crystalizing): 5 to 95% RH
