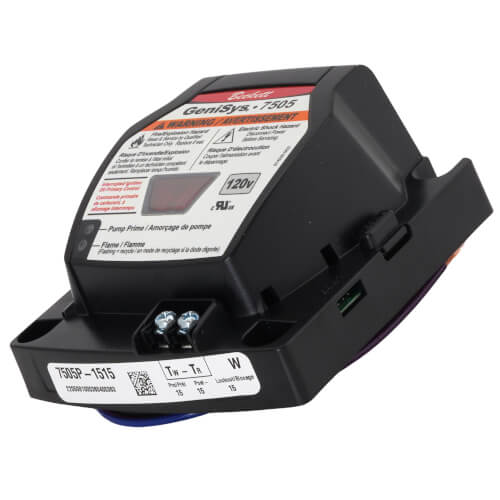

7505P GeniSys Cad Cell Oil Primary Control w/ 15 sec Pre-Purge & 15 sec Post-Purge (Replaces R7184P Relay Controls)

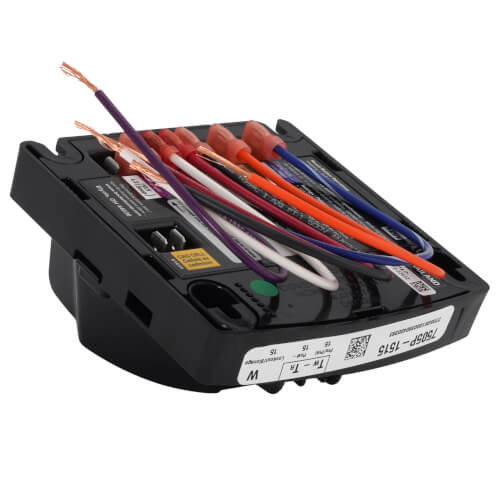

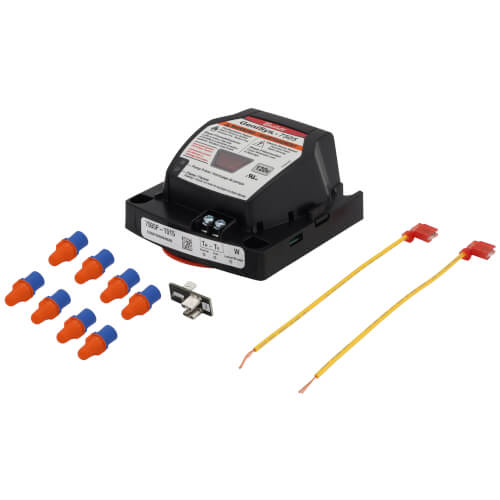

Product Update: This item has recently been updated by the manufacturer, and newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. Based on our current inventory, you may receive either the previous or updated version during this transition.

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

7505P Advanced Burner Control is the Beckett direct replacement for R7184B controls on Beckett burners. This version has 15 seconds Pre-purge and 15 seconds post-purge. Other versions available see Models and Cross Reference Guide in Manuals section.

The 7505P can be programed with pre-purge and post-purge and cycle history read using the GeniSys Contractor tool.

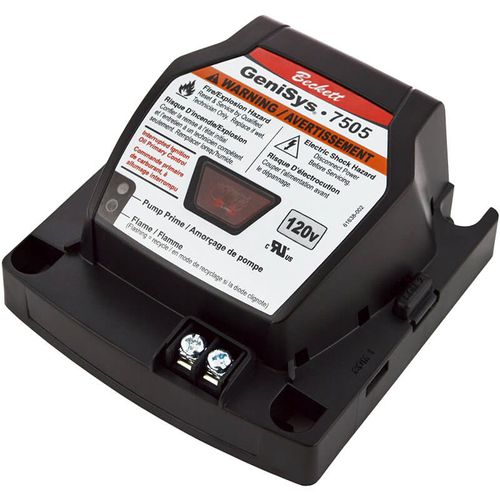

The Beckett GeniSys™ Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

Water Resistant

Thermostat and boiler control compatible

Three status lights for system monitoring and diagnostics

Welded relay protection with redundant motor relays

Limited reset and limited recycle

Technician Pump Prime mode

5-Year Warranty

7505A0000 replaces Honeywell R8184G

Two communication ports for adding alarm contacts and programming tool.

Lockout time (TFI) – 15 seconds

Pre-purge – 15 seconds

Post-purge – 15 seconds

Customizable pre-time and post-time using Contractor Tool 52082U
