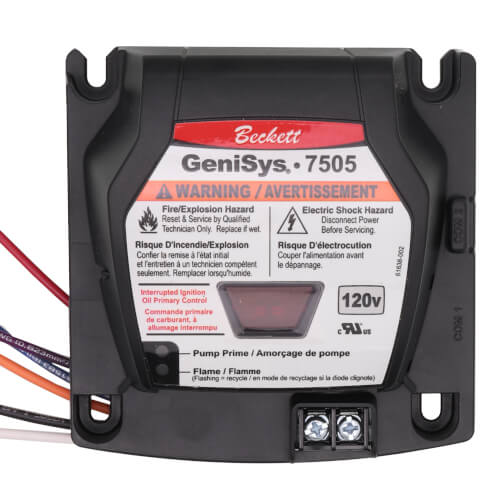

7505P GeniSys Cad Cell Oil Primary Control w/ 15 sec Pre-Purge & 30 sec Post-Purge (Replaces R7184P Relay Controls)

Product Update: This item has recently been updated by the manufacturer, and newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. Based on our current inventory, you may receive either the previous or updated version during this transition.

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

The Beckett GeniSys™ Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

• Water Resistant
• Thermostat and boiler control compatible
• Customizable pre-time and post-time
• Three status lights for system monitoring and diagnostics
• Welded relay protection with redundant motor relays
• Limited reset and limited recycle
• Sleek, modern design
• Technician Pump Prime mode
• 5-Year Warranty
• 7505a replaces Honeywell R8184G
• 7505b replaces Honeywell R7184B
• Two communication ports for adding alarm contacts, programming display, and/or future wireless communications

Technical Information

• Voltage: 102 to 132 VAC
• Current: 100 mA plus burner motor, igniter, and valve loads
• Frequency: 60 Hz
• Motor: 120 VAC, 10 full load amps (FLA), 60 locked rotor amps (LRA)
• Igniter: 120 VAC, 3 A @ 0.7 PF min
• Solenoid Valve: 120 VAC, 1 A @ 0.7 PF min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 VAC
• Storage and Operating Ambient Temperature: -4°F to +150°F (-20°C to +65°C)
• Moisture: 5-85% RH, non-condensing and non-crystallizing
• Approvals: Underwriters Laboratory Recognition per UL372 and UL1998, and CSA-B140.0
