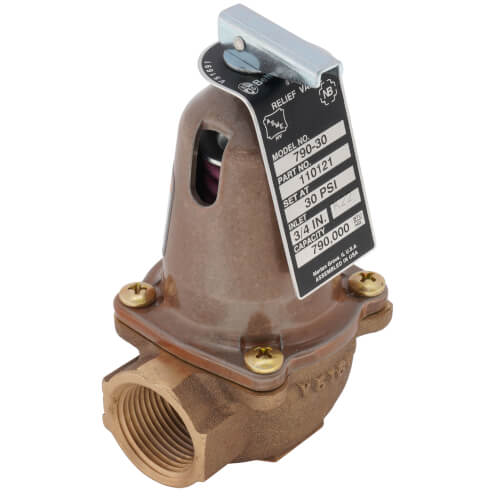

790-30 790K Relief Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$262.50 each
In Stock
Get 8 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
30 psi
Bronze
125 MAX PSI
Threaded Connection
250°F Max
Description
–
Features:
- Installed in systems to discharge water should excessive pressure develop
- Features an extra large relief diaphragm to assure positive action
- ASME Safety Relief Valves
- Protect fired and unfired hot water vessels against hazardous operating pressures.
- Engineered in accordance with Section IV of the ASME boiler and pressure code for heating boilers with capacities certified by the National Board of Boiler and Pressure Vessel Inspectors.
- Offer the highest BTUH ratings available on the market today for valves in their class (790,000 to 5,999,000 BTUH)
- EPDM diaphragm operated (cast iron models) and diaphragm assisted (bronze models) have an effective area approximately 5 times greater than conventional "pop-type" relief valves to help overcome the effects of fouling.
- Low differential between opening and closing pressures helps to prevent conditions under which system water might flash to steam and cause hammering
- Model 790 and 1170 Operating Data & Construction
- Maximum working pressure 125 PSIG (8.6 bar)
Specs
–
| Size: | 3/4" |
|---|---|
| Capacity: | 790000 BTU/hr |
| Material: | Bronze |
| Max Pressure (PSI): | 125 |
| Max. Working Pressure: | 125 PSIG |
| Pressure Set Point: | 30 psi |
| Connection Type: | Threaded |
| Max Pressure (PSIG): | 125 |
| Application: | Heating |
| Temperature Range (F): | 250°F Max |
| ASME: | Yes |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 6 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
I would purchase again if needed
Installed to give customer heat
Hvac tech
Milan, Ohio
2 years ago
Verified Buyer
Was this review helpful to you?
Great price easy to install
Easy install did what I needed it to do
Ken
Hertford, NC
4 years ago
Was this review helpful to you?
Perfect fit and great service from Supply House
This was an exact replacement for a 20+ year old valve.
I ordered it on a Sunday and it arrived the next day
Installation took about 10 minutes and I haven't had any issues yet.
Kevin
Wayne NJ
7 years ago
Verified Buyer
Was this review helpful to you?
This is an exact replacement
Needed a replacement and this was what I needed. Price fair. Shipped and arrived as promised. Exceptional for the way most do business. Thank You
joe
New Jersey
10 years ago
Verified Buyer
Was this review helpful to you?
Outstanding Service!
I ordered this pressure relief valve to replace an existing valve that no longer worked. Upon installing the replacement valve I was disappointed to see that the new valve had a very slow leak. I called the customer service team to let them know and found the service to be exceptional! I had a replacement valve in two days, I was not charged for the replacement and there was no additional shipping cost. I was provided a return label and once the part was replaced there were no further leaks. The defective part has been returned and I would definitely use this company again.
Brian
Michigan
12 years ago
Verified Buyer
Was this review helpful to you?
Last one lasted 20 years
Its a pressure relief valve.... I say the last one lasted 20 years, but it might be closer to 30! Used on a large residential boiler system. I wish I could bolt this thing onto standard water heaters!
Blue Phoenix Jake
Louisville KY
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: my 790-30 pressure relief valve is leaking water. It is on a furnace 18 years old. Do they detriorate with age.
Asked by Charlie 15 years ago
Add your answer
Verified Reply- PexSupply StaffDeterioration over time is possible. There is a rubber gasket in the valve.
