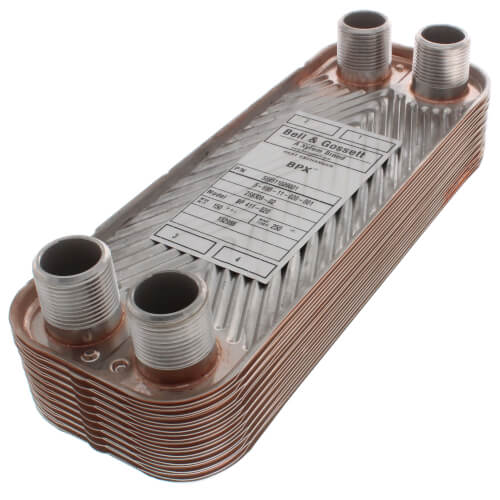

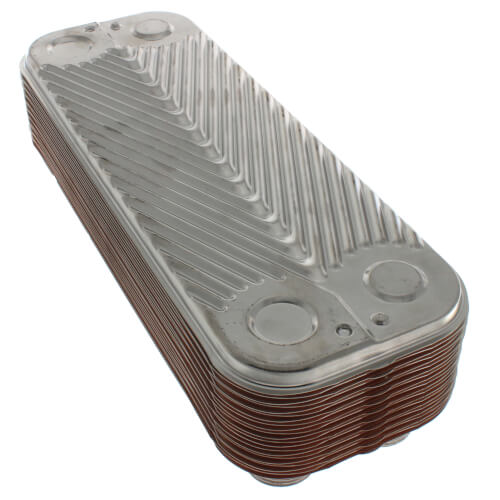

350,000 BTU/Hr Low Pressure BPX Brazed Plate Heat Exchanger
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$624.95 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
435 MAX PSI
Male Thread Type
3-2/5" Depth
350000 Max BTUs
-310°F - 450°F
-310°F Min Temp
Description
–
B & G type Low Pressure BPX brazed plate heat exchangers offer the highest level of thermal efficiency and durability in a compact, low cost unit. These are ideal for applications that require 150 PSIG or less. The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design. The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece.
Technical Specifications:
Applications:
Radiant Floor Heating:
Technical Specifications:
- BTU/Hr: 350,000
- Design Pressure: 435 PSI
- Design Temperature: -310°F min, 450°F max
- Number of Plates: 20
- Channel Plates: Stainless Steel ASTM 316L
- Brazing Material: Copper
- Weight (lbs): 7.5
Applications:
Radiant Floor Heating:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 36.1 GPM, Pressure Drop: 6.3 PSI
- Radiant Floor Side: Water 120 Degree F Supply, 100 Degree F Return, Flow: 35.3 GPM, Pressure Drop: 5.6 PSI
Specs
–
| Number of Plates: | 20 |
|---|---|
| Application: | Heating |
| Max Pressure (PSI): | 435 |
| Type: | Radiant Heat |
| Thread Type: | Male |
| Brazing Material: | Copper |
| Depth (Inches): | 3-2/5" |
| BTU Output: | 350000 |
| Cover Plate Material: | Stainless Steel |
| Temperature Range (F): | -310°F - 450°F |
| Min Temp (F): | -310°F |
| Thread Size: | 1" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Plates
Application
Type
Thread Type
Brazing Material
CURRENT ITEM
20
Heating
Radiant Heat
Male
Copper
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Excellent heat transfer
I have a in floor radiant heat system. It operated from an A//O Smith propane fired Vertex all house water heater,it does both domestic water and radiant heat all in one. I installed an outdoor wood stove that now heats my water. All of it, by using the heat exchanger I am not turning on the propane ever. I initially tried a side arm heat exchanger that just couldn't do the job.
hot rod
fife lake, mi
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can this be used with potable hot water from a water heater such as the A.O. smith? I see that it has a heating application, but I assume potable water will be circulating through it from the water heater.
Asked by Maine house builder 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this heat exchanger can be used with potable water on one side and fluid from the heating system on the other side.
