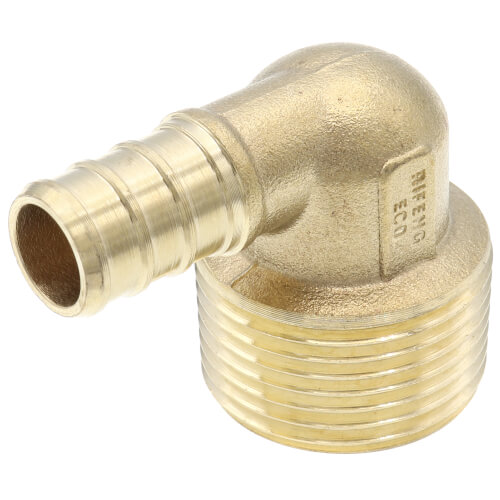

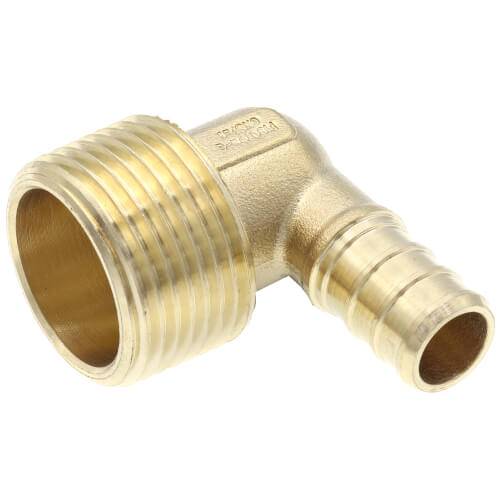

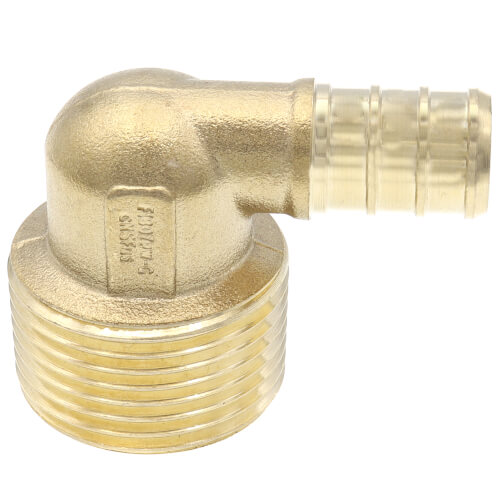

1/2" PEX x 3/4" Male Threaded DZR Brass Elbow (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5.26 each
BOX UP & SAVE 28%
$94.25 box of 25
$3.77 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
This item replaces: H135075LF, PXML1234-NL, PXME050-075
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4", 1/2", 1/2" x 3/4"
Brass
PEX
Crimp, Clamp
ASTM F1807 Standards Met
PEX Crimp x MNPT, Male Thread Type
Description
–
This product is made of Dezincification resistant ECO Brass.
Bluefin Lead Free Brass Threaded Elbows connect PEX to Female Thread. This PEX fitting may be used with the stainless steel clamping system or the copper crimp ring system.
Bluefin Lead Free Brass Threaded Elbows connect PEX to Female Thread. This PEX fitting may be used with the stainless steel clamping system or the copper crimp ring system.
Specs
–
| Thread Type: | PEX Crimp x MNPT Male |
|---|---|
| Size: | 3/4" 1/2" 1/2" x 3/4" |
| Lead Free: | Yes |
| Brass Alloy: | C69300 |
| Material: | Brass |
| Application: | Heating Plumbing |
| Max Pressure (PSI): | 200 |
| Warranty: | 5 Year |
| Standards Met: | ASTM F1807 |
| Fitting System Compatibility: | Crimp Clamp |
| Tubing Compatibility: | PEX |
| Max Temp (F): | 200°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
2 Questions2 Questions
Q: Will this work with 3/4" female BSP thread? If the answer is no, why not? What would happen?
Asked by Joanna 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo it will not, the threads will not match, it will strip one of the fittings and most likely leak.
Was this review helpful to you?
Q: Can I use this type of fitting to go from old hot water radiatior supply pipe to pex?
Asked by Paul 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, as long as the radiator pipe has 3/4" female NPT thread.
Was this review helpful to you?
