Product Highlights
Description
**NOTE: Material In This Package is Based on 12" Spacing**

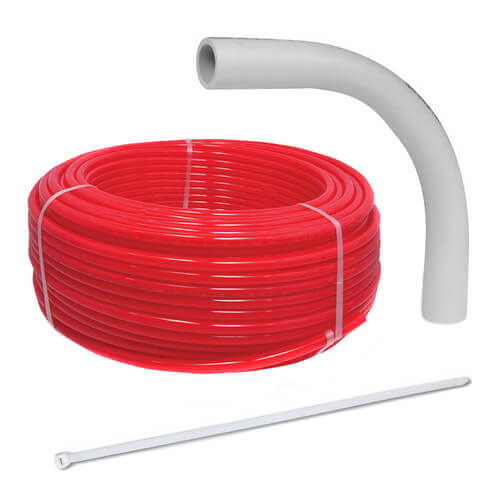

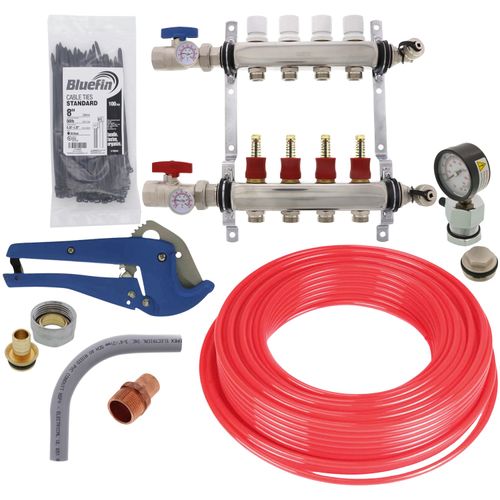

This 1000 sq. ft. Bluefin Slab radiant heat package contains the following products: (Please note that the numbers in parentheses represent the quantity included in the package).
Tubing:
- (4) T050-300-OXY: 1/2" Bluefin Oxygen Barrier PEX Tubing (300 ft Coil)
Manifold:
Fittings:
- (8) 4310500: 1/2" PEX to EK20 Loop Fitting Assembly
- (2) 30342: 1" Copper X Male Adapter
Accessories:
- (8) A5500500: 3/4" PVC elbow for 3/8" and 1/2" PEX bend support
- (1) 3610005: Pressure Test Kit
- (1) PXTBCUT1: PEX Ratchet Style Pipe Cutter (for Pipe up to 1")
- (4) CTNB08: Zip Ties (Bag of 100)
**NOTE: This package does NOT include pumps, controls or valves that may be necessary to complete the installation.
Specs
| Length (Feet): | 1200' |
|---|---|
| Application: | Heating |
| Type: | Radiant Heat Package |
| Coverage (Sq Ft.): | 1000 |
| Fitting System Compatibility: | PEX Compression |
| Tubing Compatibility: | PEX |
| PEX Size: | 1/2" |
| Tubing Type: | Oxygen Barrier |
| Number of Outlets: | 4 |
Questions?
Product Reviews
Amazing products, tech support and value
Product Q&A
2 QuestionsQ: I have a 24 x 40 Pole Shed in Northern Wisconsin and I am putting 2" Hidg densisity Urethane boad down then the PEX and 5" of concrete on top. Will I need staples to secure the pex in place? Also what diameter and the destance between the rows of Pex would you recomend?
Asked by OLE 13 years ago
Add your answer
Verified Reply- PexSupply StaffIn order to secure the PEX, you can either use PEX staples that are compatible with your insulation or zip ties connected to your wire mesh. We would recommend 1/2" PEX spaced 12" on center for a building this size.
Q: I WANT TO ISTALL THE MANIFOLD IN THE BASEMENT NEXT TO AN ADDITION I AM BUILDING. CAN THIS BE INSTALLED CENTERED TO THE SIDE OF THE AREA OR DOES IT HAVE TO HAVE THE MAIFOLD CENTERED TO THE INSTALL? I HAVE 800 SQ FEET AND AM LOOKING AT THE 1000 SQ FT
Asked by G 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe manifold can be mounted in any position that will allow you to connect your tubing to it. The manifold will work if you mount it upside down, but the flow meters may not function properly.
