$72.85 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
2 Heat/1 Cool
5 Year Warranty
Description
–

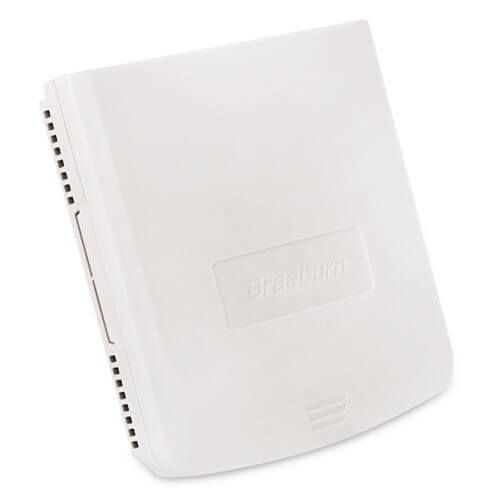

Braeburn Zone Control Panels feature the latest
in zone controls. Our economical two zone panels
deliver maximum value for all two zone applications. Equipment and status can be determined
at a glance with the monitoring LEDs built into
the panel. User economy is improved with built in
features such as last zone purge and economical
opposite mode calling.
Features:
Features:
- Compact 6" x 6" foot print maintains system appearance
- Sustainable for residential and light commercial applications
- Can be used with conventional 4 or 5 wire thermostats

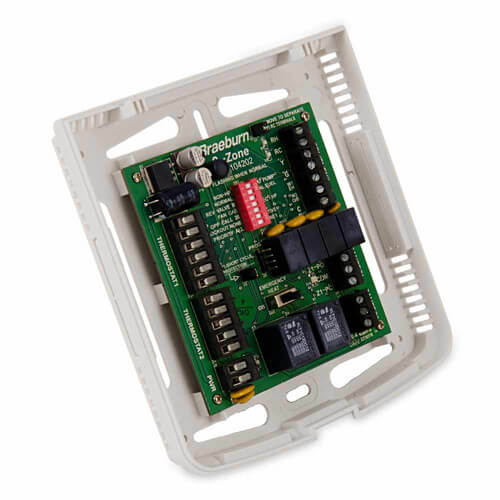

- Quick connect terminals speed installation and reliability
- Compatible with electric, gas, oil and heat pump equipment
- Controls 2 heating and 1 cooling stage
- Emergency heat switch with remote terminals for total heat pump control
- Fan purge into last calling zone for improved energy efficiency
- The value choice in 2 zone panels
- Dampers: PO/PC, PC/SR, PO/SR
- 149020
- 149040
- 149075
- 149090
- Dampers
Specs
–
| Product Type: | Control Panel |
|---|---|
| Application: | Single Stage Conventional Systems |
| Type: | Zone Control Panel |
| Stages: | 2 Heat/1 Cool |
| Voltage: | 24V |
| Features: | Dual Fuel Zone Priority Opposite Call Emergency Heat Switch |
| Warranty: | 5 Year |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3.33 out of 3 reviews
67% would recommend this product
5 star
33%
4 star
33%
3 star
0%
2 star
0%
1 star
33%
Showing 1-3 of 3 reviews
Works as it should
Try this vs the honeywell for the price difference and works great just not as fancy
Keith
Mooers ny
5 years ago
Verified Buyer
Was this review helpful to you?
A great less expensive option for zoning
I installed my first one of these about 5 years ago to zone a server room for a customer and have had zero problems out of it. I've used quite a few since also with no problems.
Arron
Houston, TX
6 years ago
Was this review helpful to you?
Trouble
I am adding another zone to my homeheating system. We (myself/my plumber)ordered this panel as a "slave" panel to be added to my existing board. He worked for a whole day without being able to align the two panels. I've had to order an entirely new 3 xone panel (from Pex Supply). We will have to remove the new slave panel, remove the existing main panel and then install the newly ordered main panel- a lot more expensive for me. Very disappointed.
Bob
Ansonia, CT 06401
13 years ago
Verified Buyer
Was this review helpful to you?
