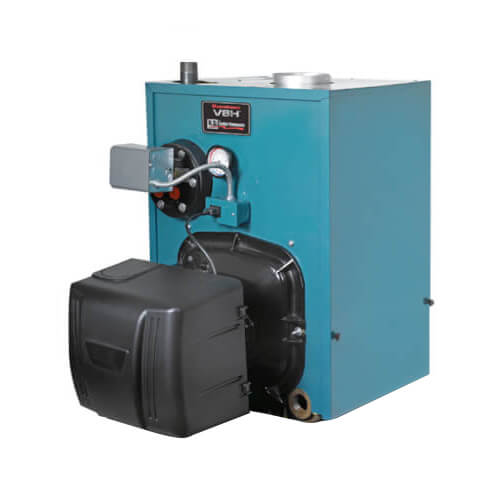

PV8H6WEC, 200,000 BTU Output V8H Water Boiler w/o Tankless Coil, no Burner (Oil)

Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

Note: Product Title reflects this boiler's Net AHRI BTU Rating

Without Tankless Coil

This item does not come with a burner. This must be purchased separately.

The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam - with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes. Beginning October 1, 2020, 03 through 07 section V8H water boilers will be upgraded to the DOE-2021 efficiency requirement of 86% AFUE.

Features:

• 86% AFUE ENERGY STAR®-certified 87% AFUE available with upgrade kit
• Cast iron sectional design
• Seven sizes available, 1.00-2.60 GPH
• Optional tankless water heater
• Multiple oil burner options for water boilers (Beckett, Carlin), includes burner cover for quiet operation
• Durable push-nipple connections between boiler sections - will not deteriorate when exposed to petroleum-based antifreeze
• Easy to clean and service - side and top cleanouts provide complete access to flueways
• Full swing-away burner door
• Lifetime limited warranty

Intelligent Oil Boiler Control

• Standard on V8H water boilers
• Combines aquastat and relay functions into a single module
• Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater
• Energy saving "thermal purge", which works by circulating residual warm water (140° or above) in the heating system before firing the boiler
• LED display for boiler status and trouble codes
• Extensively tested and proven in thousands of existing installations

Standard Equipment

• Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
• Intelligent Oil Boiler Control System (water only)
• Cast iron swing door
• Flange mounted retention oil burner
• Insulated deluxe jacket with lift-off side panel
• Boiler drain valve
• Safety relief valve
• Pressure temperature gauge
• High limit & relay
• Draft regulator
• Gauge glass set (steam only)
• Steam gauge (steam only)
• Probe-type LWCO (steam only)
• 8 and 9 section models always shipped as individually crated knock-downs
