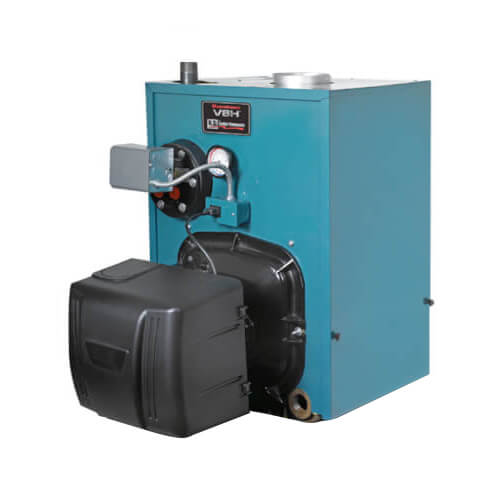

PV8H3WEC, 104,000 BTU Output V8H Water Boiler w/o Tankless Coil, and no Burner (Oil)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (2)
This item replaces: PV8H3WC-TLWN
Schematic Feature!
Replacement Parts
Lift Gate
–
This product weighs 503 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Oil
Atmospheric
1 Year (Boiler Parts), 25 Year Limited (Heat Exchanger) Warranty
Hydronic (Water)
140000 BTUs
32.25" Height
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Note: Product Title reflects this boiler's Net AHRI BTU Rating
Without Tankless Coil V8H Series
The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam - with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes. Beginning October 1, 2020, 03 through 07 section V8H water boilers will be upgraded to the DOE-2021 efficiency requirement of 86% AFUE.
Features:
Note: Product Title reflects this boiler's Net AHRI BTU Rating
Without Tankless Coil V8H Series
The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam - with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes. Beginning October 1, 2020, 03 through 07 section V8H water boilers will be upgraded to the DOE-2021 efficiency requirement of 86% AFUE.
Features:
- 86% AFUE ENERGY STAR®-certified 87% AFUE available with upgrade kit
- Cast iron sectional design
- Seven sizes available, 1.00-2.60 GPH
- Optional tankless water heater
- Multiple oil burner options for water boilers (Beckett, Carlin), includes burner cover for quiet operation
- Durable push-nipple connections between boiler sections - will not deteriorate when exposed to petroleum-based antifreeze
- Easy to clean and service - side and top cleanouts provide complete access to flueways
- Full swing-away burner door
- Lifetime limited warranty
- Standard on V8H water boilers
- Combines aquastat and relay functions into a single module
- Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater
- Energy saving "thermal purge", which works by circulating residual warm water (140° or above) in the heating system before firing the boiler
- LED display for boiler status and trouble codes
- Extensively tested and proven in thousands of existing installations
- Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
- Intelligent Oil Boiler Control System (water only)
- Cast iron swing door
- Flange mounted retention oil burner
- Insulated deluxe jacket with lift-off side panel
- Boiler drain valve
- Safety relief valve
- Pressure temperature gauge
- High limit & relay
- Draft regulator
- Gauge glass set (steam only)
- Steam gauge (steam only)
- Probe-type LWCO (steam only)
Specs
–
| Burner Brand: | None |
|---|---|
| Application: | Heating |
| Includes: | No Tankless Heater |
| BTU Input: | 140000 |
| Fuel Type: | Oil |
| Vent Type: | Atmospheric |
| IBR Rating: | 104000 |
| DOE Rating: | 120000 |
| Efficiency: | 86% |
| Burner Capacity: | 1.00 GPH |
| Flue Connection: | 6" |
| Height (Inches): | 32.25" |
| Width (Inches): | 24" |
| Depth (Inches): | 17-1/8" |
| Material: | Cast Iron |
| System Type: | Hydronic (Water) |
| Warranty: | 1 Year (Boiler Parts), 25 Year Limited (Heat Exchanger) |
Contact
+
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Special Hours
8am–6:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our CalculatorCompare Similar Products
Brand
BTU Input
Fuel Type
IBR Rating
DOE Rating
Efficiency
CURRENT ITEM
140000
Oil
104000
120000
86%
You May Also Need
PV8H3WEC - Water, Taco WN
Replacement Parts
SKU: PV8H3WEC-TLWN
Brand: Burnham
Search Parts:
SEARCH PARTS
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Combustion Chamber Blanket Kit, 1/2" x 18-3/4" x 8-3/8" for V83 and V8H3 Boilers, 108136-01
108136-01
Burnham(1)
Tapped Cover Plate - w/ Gasket & bolts for 5B, V7, V8, IND 4B & V3 Boilers, 110048-01
110048-01
Burnham --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
(6)
Tapped Cover Plate - w/ Gasket & bolts for 5B, V7, V8, IND 4B & V3 Boilers, 110048-01
110048-01
Burnham(6)
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
3 Questions3 Questions
Q: I am not home for weeks, come back for a couple of days and go away again. Is it ok to turn off the boiler while I am not home for long periods to save oil.
Asked by sushil 14 years ago
Add your answer
Verified Reply- PexSupply StaffI am not sure how big the start up process would be to turn your boiler back on, but yes, you can turn your boiler off while you are away. The biggest risk you take is the possibility of your pipes freezing because the boiler is off and the weather is at freezing temperatures. I believe most people tend to turn their boilers down to 50°F if they are going away, unless it is summer and then they will just have them turned off by a local installer or on their own. It is for you to determine.
Was this review helpful to you?
Q: How much does this weigh?
Asked by K 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis boiler has an approximate shipping weight of 542 lbs.
Was this review helpful to you?
Q: Hello I am rehabbing house with natural gas with approximate 1950 square feet what size boiler do I need with tank less hot water.And what extra parts I will need for installation? Since it is a fix and flip I am not looking for the best made gas boiler.
Asked by J.V. 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis boiler will be sufficient unless the house requires more than 56 BTUs per square foot. You could likely get by with something smaller, but you'd need to perform a heat loss calculation in order to get a precise BTU requirement.
